- 1000W Dynamic Output
- Class D Amplifier
- 15" Woofer & 1.4" HF Driver
- On-Board 2-Channel Mixer
- Floor, FOH, Rigged Applications
- Designed for Portability
- Built-In Rigging Points
Overview

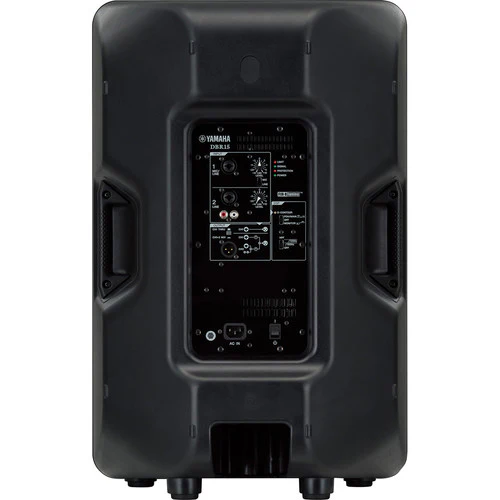

Giving you the flexibility of using it for floor monitoring, front of house, or rigged applications, the DBR15- 15" 2-Way Powered Loudspeaker from Yamaha is capable of up to 1000W of dynamic output via its Class D amplifier. The loudspeaker features a 15" woofer and a 1.25" compression driver and provides a maximum output of 132 dB. An on-board 2-channel mixers allows you to connect microphone or line level sources via 1/4", XLR, and RCA connectors. Thanks to its ergonomic handle and lightweight design the DBR15 is portable and can be easily transported.
Key Specs
PA Speaker
| Configuration |
Active 2-Way
|
| Enclosure Type |
Bass-Reflex Loudspeaker
|
| Total Power Capacity |
1000 W Peak
465 W RMS
|
| Amplifier Power Rating |
LF:
800 W Peak
400 W RMS
HF:
200 W Peak
65 W RMS
|
Drivers
| HF Driver |
1 x 1.4" / 35.6 mm Compression Driver
|
| LF Driver |
1x 15" / 387 mm Woofer
|
| LF Voice Coil |
2.5" / 6.35 cm
|
| Magnet |
HF:
Ferrite
LF:
Ferrite
|
Performance
| Frequency Range |
50 Hz to 20 kHz -10 dB
|
| Maximum SPL |
132 dB SPL
|
| Coverage Angle |
90° H x 60° V
|
Connectivity
| Audio I/O |
2x Combo XLR-1/4" TRS Input
1x Stereo RCA Unbalanced Input
1x XLR 3-Pin Output
|
Power
| AC Input Power |
100 to 120 VAC, 50 / 60 Hz
|
| Power Consumption |
74 W (1/8 Power)
18 W (Idle)
|
Physical
| Mounting |
1 x 1.38" / 35 mm Pole Socket (Bottom)
2 x M8 (Bottom)
1 x M8 (Rear)
1 x Pole Socket
|
| Handles |
2x Side
|
| Cooling |
Fan (Variable Speed)
|
| Construction Material |
Plastic
|
| Dimensions |
17.9 x 27.6 x 14.9" / 455 x 700 x 378 mm
|
| Weight |
42.6 lb / 19.3 kg
|
Packaging Info
| Package Weight |
53.5 lb
|
| Box Dimensions (LxWxH) |
31 x 21 x 19"
|
What's in the Box:
- Yamaha DBR15- 15" 2-Way Powered Loudspeaker
-
Limited 1-Year Manufacturer Warranty
