Sound Devices CL-16 Linear Fader Control Surface for 888 and Scorpio Mixer-Recorders

Product image 1
1 / 3

Sound Devices CL-16 Linear Fader Control Surface for 888 and Scorpio Mixer-Recorders

Key Features
  • Control Channels, Busses, EQ, Pan & More
  • 16 x 100mm Faders
  • 32 x Multifunction Controls
  • USB Connection for Mixer-Recorder
  • Easy-to-Read LCD
  • 5 x User-Assignable Buttons
  • 5 x USB Ports on Rear for Charging
  • 10-Pin Remote Input & 1/4" Footswitch In
  • Includes USB Cable
  • Includes 1/4" Cable for Footswitch

Ā

Overview

Designed for 8-series or Scorpio mixers, theĀ Sound Devices CL-16Ā is a mixer controller that combines the functionality of a traditional channel strip with the power and versatility of modern digital mixers. Once you connect it to your mixer-recorder via the included USB Type-B to USB Type-A cable, you can use the CL-16 to control channels, outputs, menus, metadata, and even on-set communications, and thus, improve the experience of cart-based location mixing.

The CL-16 provides 16 Penny & Giles 100mm linear faders, which are considered some of the smoothest faders around. The unit also offers 16 dedicated trim pots and a panoramic LCD screen that is readable in sunlight. This display will handle much of the necessary read-out information from your 8-series mixer-recorder.

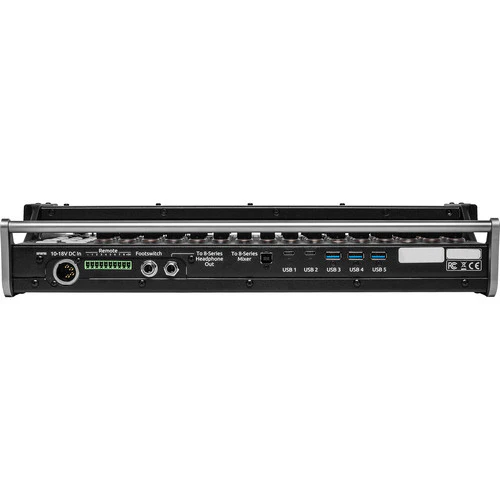

You'll find 32 multifunction controls for adjusting gains past channel 16, as well as for controlling bus gains, output gains, panning adjustments, and EQ. Five user-assignable buttons can be programmed to handle tasks you deem the most important, and built-in USB ports on the rear provide charging for phones, tablets, battery chargers, or other compatible gear. You'll find three USB Type-A and two USB Type-C ports.

Use the ten-pin remote input for custom wiring of LEDs and switches, and make use of the TRS footswitch input as well, for which a 1/4" cable has been supplied. You'll find two headphone jacksā€”one 1/4", and the other 3.5mm. Power the unit over the XLR 4-pin jack using any separately available compatible cord.

Specs

Headphone Outputs
1 x 1/4" Output
1 x 3.5 mm Output
Voltage
0 to 18 VDC over XLR-4 (Available Separately)
Pin 4 = +, Pin 1 = Ground
Current Draw
Min: 560 mA Quiescent at 12 VDC in, All USB Ports Left Open
Mid: 2.9 A, USB Ports Total Load 5 A
Max: 5.5 A, USB Ports Total Load 10 A
USB
USB Type-A Ports: 5 V, 1.5 A Each
USB Type-C Ports: 5 V, 3 A Each
Ports
Remote Port Power: 5 V, 1 A Available on Pin 10
Remote Port Input: 60 KOhms Typical; Vih = 3.5 V (Min), Vil = 1.5 V (Max)
Remote Port Output: 100 Ohms When Configured as Output
Foot Switch
1 kOhms, Typical
Connect to Ground to Operate (Active Low)
Fader Range
3.9" / 10.0 cm
Dimensions
Screen Folded Down: 3.2 x 17.1 x 13.0" / 8.0 x 43.5 x 32.9 cm
Screen Folded Out: 5.8 x 17.1 x 14.1" / 14.6 x 43.5 x 35.9 cm
Weight
10.4 lb / 4.7 kg


What's in the Box:

  • Sound Devices CL-16 Linear Fader Control Surface for 888 and Scorpio Mixer-Recorders
  • USB Type-A to Type-B Cable (6.6')
  • 10-Pin Phoenix Screw Terminal Block
  • 1/4" TRS Cable
  • Limited 1-Year Manufacturer Warranty
