SmallRig x Caleb Pike VB212 Mini V-Mount Battery

Product image 1
1 / 4

SmallRig x Caleb Pike VB212 Mini V-Mount Battery

Key Features
  • 212Wh Lithium-Ion V-Mount Battery
  • Supports up to 10A Draw
  • 2 x 14.8V D-Tap Outputs
  • USB-C Outputs, 2 x DC Barrel Outputs
  • USB-C Input/Output
  • USB-C Fast PD Charging up to 140W
  • Ultracompact, Travel-Friendly Size



Overview

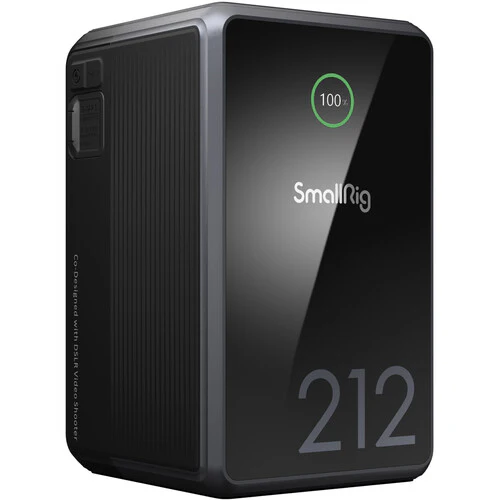

The SmallRig x Caleb Pike VB212 Mini V-Mount Battery is an ultracompact, lightweight 212Wh capacity battery that can support up to a 10A draw with a nominal 14.76V output. This travel-friendly battery is suitable for powering handheld cameras, drones, and gimbals.

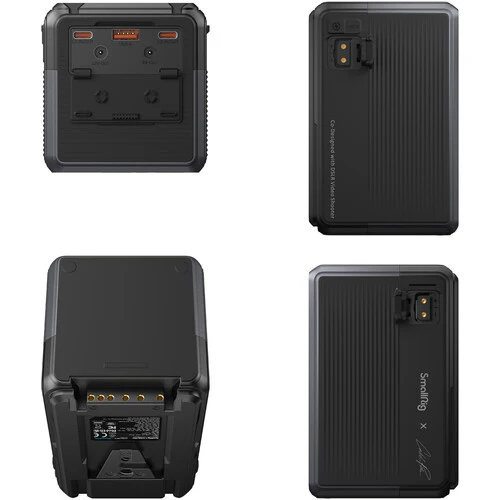

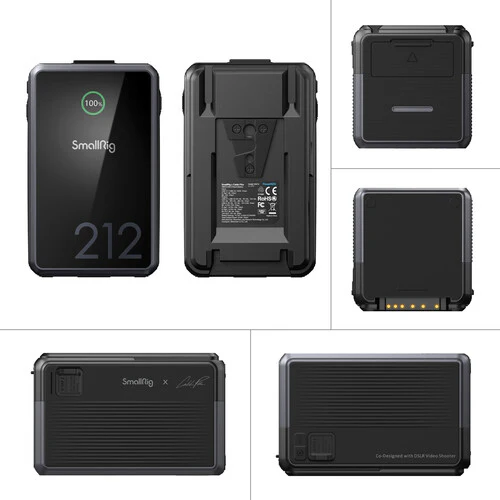

The VB212 provides multiple accessory ports, including one 14.8V D-tap output, one 8 VDC barrel output, one 12 VDC barrel output, one USB-C output, and one USB-A output for powering various accessories, cameras, or mobile devices. The battery can be charged using a standard V-mount charger, an optional D-tap charger, or via the USB-C input/output with a PD fast charger. A built-in bright OLED display shows the remaining battery capacity and status.

Note:
Always check with your airline, as battery regulations may change.

Key Specs

Mount / Series Type
V-Mount
Chemistry
Lithium-Ion
Battery Capacity
212.54 Wh
Output Voltage
14.76 VDC
Maximum Load
212 W, 10 A
Accessory I/O
2x USB-C Input/Output 140 W Regulated
1x USB-A Input/Output 5 V / 3 A, 9 V / 3 A, 12V / 3A, 15V / 3A, 20 V / 5 A, 28 V / 5 A Regulated
2x D-Tap / P-Tap Output 14.76 V, 6 A Regulated
1x Barrel 2.1 mm Output 8 V, 3 A Regulated
1x Barrel 2.5 mm Output 12 V, 3 A Regulated
USB Output
5 V, 3 A
9 V, 3 A
12 V, 3 A
15 V, 3 A
20 V, 5 A
28 V, 5 A
Charging Voltage
11.2 VDC
Operating Temperature
5 to 140°F / -15 to 60°C
Charging Temperature
32 to 122°F / 0 to 50°C
Certifications
CE, FCC, PSE, RCM, RoHS
Environmental Resistance
No
Dimensions (W x H x D)
5.1 x 3.3 x 3.1" / 130 x 83 x 80 mm
Weight
2.89 lb / 1.31 kg

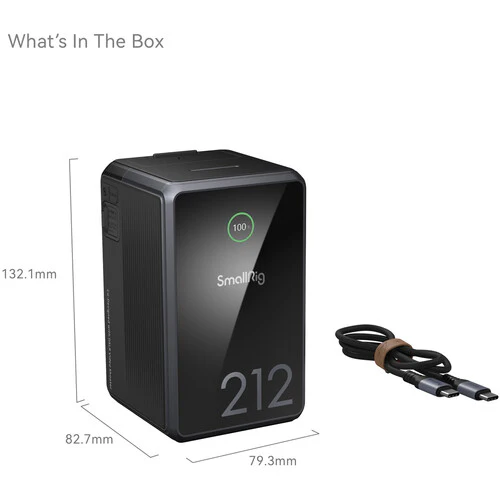

What's in the Box:

  • SmallRig x Caleb Pike VB212 Mini V-Mount Battery
  • USB-C Charging Cable (240W)
  • Limited 1-Year Manufacturer Warranty
