SmallRig VB155 Mini V-Mount Battery (155Wh)

Product image 1
1 / 7
+2

SmallRig VB155 Mini V-Mount Battery (155Wh)

Key Features

  • 155Wh Lithium-Ion V-Mount Battery
  • Supports up to 14A Draw
  • 1 x 14.8V D-Tap Output
  • USB-A Output, 2 x DC Barrel Outputs
  • USB-C Input/Output
  • D-Tap & USB-C Fast PD Charging
  • Ultra-Compact, Travel-Friendly Size

Overview

TheĀ VB155 Mini V-Mount BatteryĀ fromĀ SmallRigĀ is an ultracompact, lightweight 155Wh battery that can support up to a 14A draw at a nominal 14.8V. This travel-friendly battery is suitable for powering handheld cameras, drones, and gimbals.

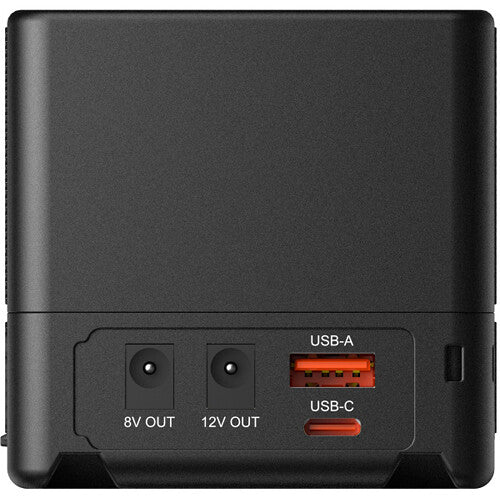

The VB155 provides multiple accessory ports, including one 14.8V D-Tap output, one 8 VDC barrel output, one 12 VDC barrel output, one USB-C output, and one USB-A output for powering various accessories, cameras, or mobile devices. The battery can be charged using a standard V-mount charger, an optional D-Tap charger, or by using the USB-C input/output with a 65W PD fast charger. A built-in OLED display shows the remaining battery capacity and status.

Key Specs

Mount / Series Type
V-Mount
Chemistry
Lithium-Ion
Battery Capacity
155 Wh
Output Voltage
14.8 VDC
Maximum Load
14 A
Accessory I/O
1x D-Tap / P-Tap Output 14.8 V, 14 A Regulated
1x USB-A Output 5 V Regulated
1x D-Tap / P-Tap Input 16.8 V, 8 A Regulated
1x USB-C Input/Output 65 W Regulated
1x Barrel 2.5 mm Output 12 V Regulated
1x Barrel 2.1 mm Output 8 V Regulated
USB Output
5 V
Charging Voltage
16.8 VDC
Accessory Mounting Thread
No
Operating Temperature
14 to 113Ā°F / -10 to 45Ā°C
Storage Temperature
-4 to 140Ā°F / -20 to 60Ā°C
Environmental Resistance
No
Dimensions (W x H x D)
4.1 x 2.9 x 2.8" / 105 x 73 x 71Ā mm
Weight
26.8Ā oz / 760Ā g
Packaging Info
Package Weight
2.23 lb
Box Dimensions (LxWxH)
5.8 x 4.8 x 3.6"


What's in the Box:

  • SmallRig VB155 Mini V-Mount Battery (155Wh)
  • Sticker Set
  • Limited 1-Year Manufacturer Warranty

Key Features

  • 155Wh Lithium-Ion V-Mount Battery
  • Supports up to 14A Draw
  • 1 x 14.8V D-Tap Output
  • USB-A Output, 2 x DC Barrel Outputs
  • USB-C Input/Output
  • D-Tap & USB-C Fast PD Charging
  • Ultra-Compact, Travel-Friendly Size

Overview

TheĀ VB155 Mini V-Mount BatteryĀ fromĀ SmallRigĀ is an ultracompact, lightweight 155Wh battery that can support up to a 14A draw at a nominal 14.8V. This travel-friendly battery is suitable for powering handheld cameras, drones, and gimbals.

The VB155 provides multiple accessory ports, including one 14.8V D-Tap output, one 8 VDC barrel output, one 12 VDC barrel output, one USB-C output, and one USB-A output for powering various accessories, cameras, or mobile devices. The battery can be charged using a standard V-mount charger, an optional D-Tap charger, or by using the USB-C input/output with a 65W PD fast charger. A built-in OLED display shows the remaining battery capacity and status.

Key Specs

Mount / Series Type
V-Mount
Chemistry
Lithium-Ion
Battery Capacity
155 Wh
Output Voltage
14.8 VDC
Maximum Load
14 A
Accessory I/O
1x D-Tap / P-Tap Output 14.8 V, 14 A Regulated
1x USB-A Output 5 V Regulated
1x D-Tap / P-Tap Input 16.8 V, 8 A Regulated
1x USB-C Input/Output 65 W Regulated
1x Barrel 2.5 mm Output 12 V Regulated
1x Barrel 2.1 mm Output 8 V Regulated
USB Output
5 V
Charging Voltage
16.8 VDC
Accessory Mounting Thread
No
Operating Temperature
14 to 113Ā°F / -10 to 45Ā°C
Storage Temperature
-4 to 140Ā°F / -20 to 60Ā°C
Environmental Resistance
No
Dimensions (W x H x D)
4.1 x 2.9 x 2.8" / 105 x 73 x 71Ā mm
Weight
26.8Ā oz / 760Ā g
Packaging Info
Package Weight
2.23 lb
Box Dimensions (LxWxH)
5.8 x 4.8 x 3.6"


What's in the Box:

  • SmallRig VB155 Mini V-Mount Battery (155Wh)
  • Sticker Set
  • Limited 1-Year Manufacturer Warranty
