• 12G-SDI & HDMI 2.0 Input/Output
• 1 x 40 Gb/s Thunderbolt 3 Interface
• 3" LCD Status/Preview Screen
• DCI 4K60 4:2:2 Single-Link 12G-SDI I/O
• DCI 4K30 4:4:4 Single-Link 12G-SDI I/O
• DCI4K60 4:4:4 via HDMI
• 8-, 10- & 12-Bit Processing
• 2K/HD/SD via SDI or HDMI
• RS-422 Deck Control
• macOS, Windows & Linux Compatible




Overview

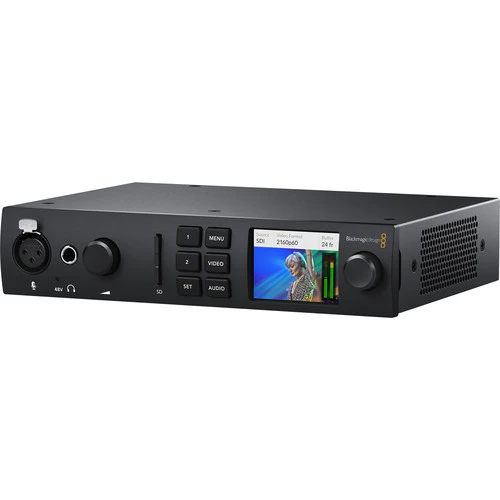

The Blackmagic Design UltraStudio 4K Mini Thunderbolt 3 links your Thunderbolt 3 computer to any of a variety of video components for capture, playback, or streaming. This portable unit captures up to DCI 4K60 4:2:2 via single-link 12G-SDI or up to DCI 4K30 4:2:2 video via HDMI. Record 12-bit High Dynamic Range (HDR) footage at rates up to DCI 4K30 and 8-/10-bit video at rates up to DCI 4K60. A built-in LCD screen enables you to monitor your signal, and an SD card reader provides instant access to your SD media. The compact UltraStudio 4K Mini's Thunderbolt 3 interface offers lightning-fast connections and will trickle-charge a connected computer. Audio features include 16-channel SDI and 8-channel HDMI embedded input and output, a 3-pin XLR audio input, and a headphone output.



Key Specs
