Blackmagic Design Studio Camera 4K Pro G2

Product image 1
1 / 4

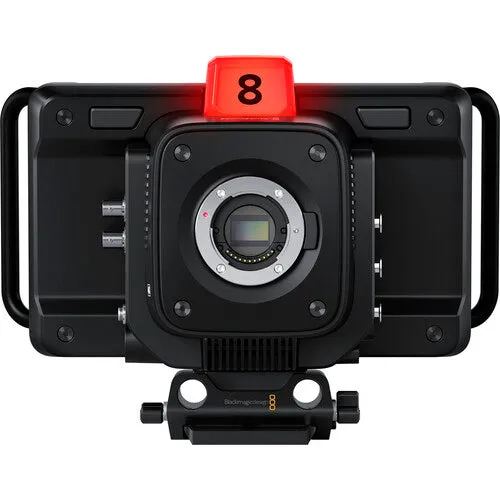

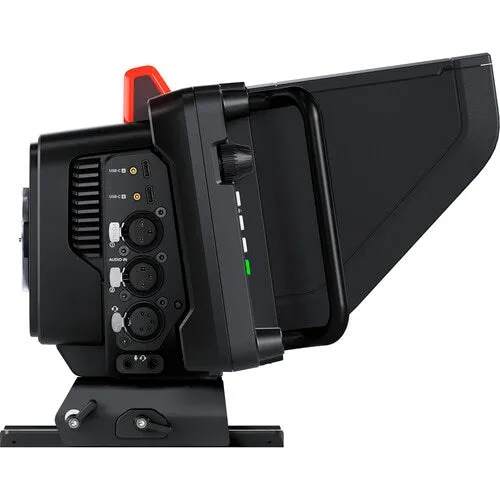

Blackmagic Design Studio Camera 4K Pro G2

Key Features
  • Micro Four Thirds Lens Mount
  • Capture up to UHD 4K 3840 x 2160p60
  • Live Streaming
  • 12G-SDI, HDMI & 10G Ethernet Video I/O
  • Affordable Single-Cable PoE Workflow
  • 7" High-Brightness HDR Touchscreen LCD
  • Record to External USB Type-C Disks
  • Records Blackmagic Raw, Up to 25,600 ISO
  • 12G-SDI, HDMI & 10G Ethernet Video I/O
  • XLR & 3.5mm Audio Input, Built-In Mics



Overview

Made to work seamlessly with powerful SDI video switchers, the Blackmagic Design Studio Camera 4K Pro G2 now offers live streaming plus pro connections like 12G-SDI and 10GbE Ethernet. The Ethernet connection enables you to set up a SMPTE-style workflow using a more affordable single-cable setup with PoE (power over ethernet) and the 12G-SDI output and program return provides camera control, talkback, and tally functions. This latest 4K Pro model retains features like a 7" touchscreen monitor, HDMI output, Blackmagic Raw recording, HDR support, XLR audio, and Micro Four Thirds lens mount from its predecessor.

Key Specs

Image Sensor
17.78 x 10 mm (Four Thirds) CMOS
Sensor Resolution
Not Specified by Manufacturer
ISO Sensitivity
100 to 25,600
Lens Mount
Micro Four Thirds
Broadcast System Compatibility
NTSC, PAL
Video I/O
1x BNC (12G-SDI) Input
1x BNC (12G-SDI) Output
1x HDMI Output
Audio I/O
2x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input on Camera Body
1x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
1x XLR 5-Pin Intercom Input/Output
Raw Recording
Blackmagic RAW 10-Bit
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps [26 to 190 Mb/s]
Display Type
Fixed Touchscreen LCD
Power I/O
1x XLR 4-Pin (12VDC) Input
1x Barrel (12VDC) Input
Imaging
Image Sensor
17.78 x 10 mm (Four Thirds) CMOS
Sensor Resolution
Not Specified by Manufacturer
ISO Sensitivity
100 to 25,600
Gain
0 to 18 dB
Sensitivity
f/11 at 2000 lux 89.9% Reflectance (UHD 4K60)
f/12 at 2000 lux 89.9% Reflectance (UHD 4K60)
Signal-to-Noise Ratio
63 dB
Camera
Lens Mount
Micro Four Thirds
Shutter Speed
1/5000 to 1/24 Second
Built-In ND Filter
No
Built-In Microphone
Stereo
Broadcast System Compatibility
NTSC, PAL
Interfaces
CCU I/O
No
Video I/O
1x BNC (12G-SDI) Input
1x BNC (12G-SDI) Output
1x HDMI Output
Audio I/O
2x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input on Camera Body
1x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
1x XLR 5-Pin Intercom Input/Output
Other I/O
1x RJ45 (10 Gigabit Ethernet) Control/Data/Monitor/Video Input/Output
2x USB-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output
Recording
Raw Recording
Blackmagic RAW 10-Bit
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps [26 to 190 Mb/s]
Audio Recording
ProRes: 2-Channel 24-Bit 48 kHz LPCM Audio
Display
Display Type
Fixed Touchscreen LCD
Display Size
7"
Resolution
1920 x 1200
Power
Power I/O
1x XLR 4-Pin (12VDC) Input
1x Barrel (12VDC) Input
Power Consumption
46 W
General
Operating Conditions
32 to 72°F / 0 to 40°C up to 90% Humidity
Storage Conditions
-4 to 113°F / -20 to 45°C
Accessory Mounting Thread
2x 1/4"-20
Tripod Mount
3/8"-16 Female
Dimensions (W x H x D)
10.77 x 6.68 x 6.59" / 27.36 x 16.97 x 16.74 cm (Without Protrusions)
Weight
3.71 lb / 1.68 kg
Packaging Info
Package Weight
7.59 lb
Box Dimensions (LxWxH)
12.2 x 10.2 x 8.3"

What's in the Box:

  • Blackmagic Design Studio Camera 4K Pro G2
  • Sun Hood
  • Turret Dust Cap
  • Universal Power Supply with International Socket Adapters
  • 15mm LWS Tripod Mount
  • Tally Decal Set
  • DaVinci Resolve 18 Free Download
  • Limited 1-Year Manufacturer Warranty
Key Features
  • Micro Four Thirds Lens Mount
  • Capture up to UHD 4K 3840 x 2160p60
  • Live Streaming
  • 12G-SDI, HDMI & 10G Ethernet Video I/O
  • Affordable Single-Cable PoE Workflow
  • 7" High-Brightness HDR Touchscreen LCD
  • Record to External USB Type-C Disks
  • Records Blackmagic Raw, Up to 25,600 ISO
  • 12G-SDI, HDMI & 10G Ethernet Video I/O
  • XLR & 3.5mm Audio Input, Built-In Mics



Overview

Made to work seamlessly with powerful SDI video switchers, the Blackmagic Design Studio Camera 4K Pro G2 now offers live streaming plus pro connections like 12G-SDI and 10GbE Ethernet. The Ethernet connection enables you to set up a SMPTE-style workflow using a more affordable single-cable setup with PoE (power over ethernet) and the 12G-SDI output and program return provides camera control, talkback, and tally functions. This latest 4K Pro model retains features like a 7" touchscreen monitor, HDMI output, Blackmagic Raw recording, HDR support, XLR audio, and Micro Four Thirds lens mount from its predecessor.

Key Specs

Image Sensor
17.78 x 10 mm (Four Thirds) CMOS
Sensor Resolution
Not Specified by Manufacturer
ISO Sensitivity
100 to 25,600
Lens Mount
Micro Four Thirds
Broadcast System Compatibility
NTSC, PAL
Video I/O
1x BNC (12G-SDI) Input
1x BNC (12G-SDI) Output
1x HDMI Output
Audio I/O
2x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input on Camera Body
1x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
1x XLR 5-Pin Intercom Input/Output
Raw Recording
Blackmagic RAW 10-Bit
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps [26 to 190 Mb/s]
Display Type
Fixed Touchscreen LCD
Power I/O
1x XLR 4-Pin (12VDC) Input
1x Barrel (12VDC) Input
Imaging
Image Sensor
17.78 x 10 mm (Four Thirds) CMOS
Sensor Resolution
Not Specified by Manufacturer
ISO Sensitivity
100 to 25,600
Gain
0 to 18 dB
Sensitivity
f/11 at 2000 lux 89.9% Reflectance (UHD 4K60)
f/12 at 2000 lux 89.9% Reflectance (UHD 4K60)
Signal-to-Noise Ratio
63 dB
Camera
Lens Mount
Micro Four Thirds
Shutter Speed
1/5000 to 1/24 Second
Built-In ND Filter
No
Built-In Microphone
Stereo
Broadcast System Compatibility
NTSC, PAL
Interfaces
CCU I/O
No
Video I/O
1x BNC (12G-SDI) Input
1x BNC (12G-SDI) Output
1x HDMI Output
Audio I/O
2x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input on Camera Body
1x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
1x XLR 5-Pin Intercom Input/Output
Other I/O
1x RJ45 (10 Gigabit Ethernet) Control/Data/Monitor/Video Input/Output
2x USB-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output
Recording
Raw Recording
Blackmagic RAW 10-Bit
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps [26 to 190 Mb/s]
Audio Recording
ProRes: 2-Channel 24-Bit 48 kHz LPCM Audio
Display
Display Type
Fixed Touchscreen LCD
Display Size
7"
Resolution
1920 x 1200
Power
Power I/O
1x XLR 4-Pin (12VDC) Input
1x Barrel (12VDC) Input
Power Consumption
46 W
General
Operating Conditions
32 to 72°F / 0 to 40°C up to 90% Humidity
Storage Conditions
-4 to 113°F / -20 to 45°C
Accessory Mounting Thread
2x 1/4"-20
Tripod Mount
3/8"-16 Female
Dimensions (W x H x D)
10.77 x 6.68 x 6.59" / 27.36 x 16.97 x 16.74 cm (Without Protrusions)
Weight
3.71 lb / 1.68 kg
Packaging Info
Package Weight
7.59 lb
Box Dimensions (LxWxH)
12.2 x 10.2 x 8.3"

What's in the Box:

  • Blackmagic Design Studio Camera 4K Pro G2
  • Sun Hood
  • Turret Dust Cap
  • Universal Power Supply with International Socket Adapters
  • 15mm LWS Tripod Mount
  • Tally Decal Set
  • DaVinci Resolve 18 Free Download
  • Limited 1-Year Manufacturer Warranty
