Blackmagic Design Studio Camera 4K Plus G2

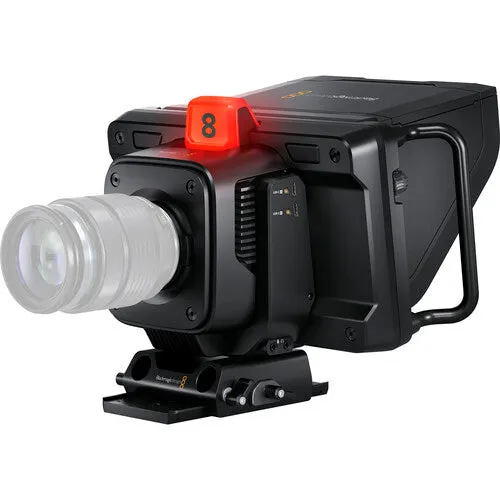

Product image 1
1 / 4

Blackmagic Design Studio Camera 4K Plus G2

Key Features
  • Active Micro Four Thirds Lens Mount
  • Capture up to UHD 4K 3840 x 2160p60
  • 12G-SDI Input/Output, HDMI Output
  • Control via HDMI, SDI, USB, or Ethernet
  • 7" LCD Capacitive Touchscreen
  • Record to External USB-C Disks
  • Records Blackmagic RAW, Up to 25,600 ISO
  • 3.5mm Audio Input, Built-In Mics
  • Built-In DaVinci Resolve Color Corrector
  • Light Carbon Fiber Polycarbonate Body



Overview

Add a powerful studio camera to your 4K broadcast when using an ATEM Mini or DaVinci Studio with the Blackmagic Design Studio Camera 4K Plus G2. Updated from the HDMI Studio Camera 4K Plus, this compact and lightweight broadcast camera now features a 12G-SDI input, 12G-SDI output, and HDMI 2.0 output for even more compatibility with SDI switchers. This camera has all the same features as the Studio Camera 4K Plus, including an active MFT lens mount, 25,600 ISO, 13 stops of dynamic range, a tally light, two USB-C ports for recording and control, built-in dual microphones, a 7" HDR LCD, and a redesigned sun hood. And now it can output 12G-SDI video as well as utilize the program feed and talkback features via SDI.

Key Specs

Image Sensor
17.78 x 10 mm (Four Thirds) CMOS
Sensor Resolution
Not Specified by Manufacturer
ISO Sensitivity
100 to 25,600
Lens Mount
Micro Four Thirds
Broadcast System Compatibility
NTSC, PAL
Video I/O
1x HDMI 2.0 Output
1x BNC (12G-SDI) Input
1x BNC (12G-SDI) Output
Audio I/O
1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone/Line Input/Output
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Raw Recording
Blackmagic RAW
6144 x 3456
6144 x 2560
5376 x 3024
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/60 fps
Display Type
Fixed Touchscreen LCD
Power I/O
1x Barrel (12VDC) Input
Imaging
Image Sensor
17.78 x 10 mm (Four Thirds) CMOS
Sensor Resolution
Not Specified by Manufacturer
Horizontal Resolution (TV Lines)
0 TV Lines
ISO Sensitivity
100 to 25,600
Gain
0 to 18 dB
Signal-to-Noise Ratio
63 dB
Camera
Lens Mount
Micro Four Thirds
Shutter Type
Mechanical Focal Plane Shutter
Shutter Speed
1/5000 to 1/24 Second
Precise Scan Rate Control
No
Built-In ND Filter
No
Built-In Microphone
Stereo
Broadcast System Compatibility
NTSC, PAL
Interfaces
CCU I/O
No
Video I/O
1x HDMI 2.0 Output
1x BNC (12G-SDI) Input
1x BNC (12G-SDI) Output
Audio I/O
1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone/Line Input/Output
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Other I/O
2x USB-C (USB 3.2 / 3.1 Gen 1) Control/Data/Video Input/Output
Recording
Raw Recording
Blackmagic RAW
6144 x 3456
6144 x 2560
5376 x 3024
3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps
1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/60 fps
Audio Recording
Raw: 2-Channel 24-Bit 48 kHz LPCM Audio
Display
Display Type
Fixed Touchscreen LCD
Display Size
7"
Resolution
1920 x 1200
Power
Power I/O
1x Barrel (12VDC) Input
Power Consumption
>46 W
General
Operating Conditions
32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions
-4 to 113°F / -20 to 45°C
Shoe Mount
No
Accessory Mounting Thread
2x 1/4"-20 on Camera Body
1x 3/8"-16 on Camera Body
Tripod Mount
3/8"-16 Female
Dimensions (W x H x D)
10.77 x 6.68 x 6.59" / 27.36 x 16.97 x 16.74 cm (Without Protrusions)
Weight
3 lb / 1.4 kg
Packaging Info
Package Weight
7.065 lb
Box Dimensions (LxWxH)
13.4 x 10.3 x 8.3"

What's in the Box:

  • Blackmagic Design Studio Camera 4K Plus G2
  • Sun Hood
  • Turret Dust Cap
  • Universal Power Supply with International Socket Adapters
  • 15mm LWS Tripod Mount
  • Limited 1-Year Manufacturer Warranty
