- 1x SD/HD/3G-SDI Input & 1 x Loop Output
- 1 x HDMI Type A Output
- DCI 2K SDI In/Out | 1080p60 HDMI Out
- AC Power Supply & Socket Adapters
- 3D LUT for Calibrating or Loop Output
- SDI A/B Selection | USB Power
- Embedded Audio
- Compact, Rugged Design
- LED Video & Power Signal Indicators
Overview

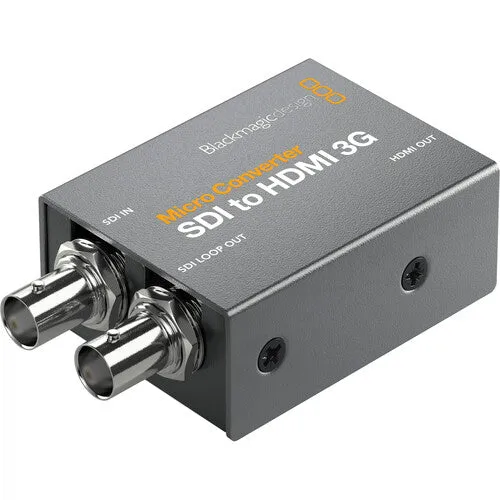

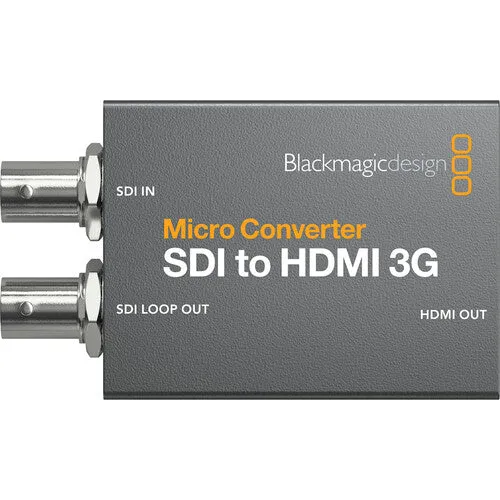

Super compact and rugged, the Blackmagic Design Micro Converter SDI to HDMI 3G enables you to use HDMI-input monitors and televisions for production monitoring. This compact converter has one SD/HD/3G-SDI input, one HDMI output, and one SD/HD/3G-SDI loop output. It includes a 17-point 3D LUT that can be used to calibrate HDMI- or SDI-input monitors and it can output a LUT for viewing via the SDI loop output. The Micro Converter SDI to HDMI 3G also features automatic SD, HD, and Level A and B SDI detection and support for a wide range of pro broadcast resolutions including cine-style 48 fps.

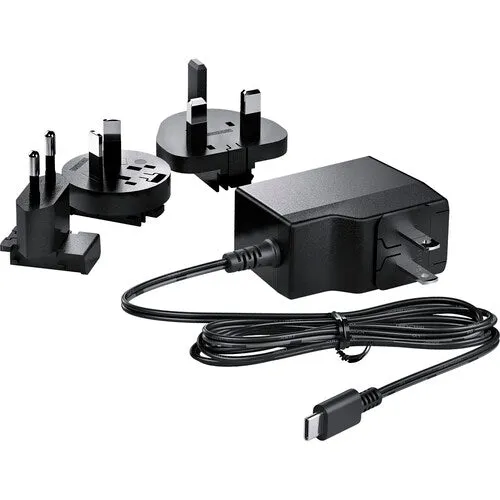

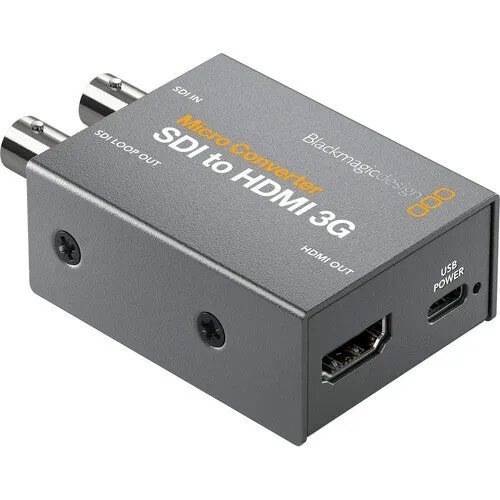

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the SDI to HDMI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.
Key Specs
| Video Inputs |
1x BNC (3G-SDI)
|
| Audio Inputs |
No
|
| Video Outputs |
1x BNC (3G-SDI) (Loop Output)
1x HDMI
|
| Audio Outputs |
No
|
| Other I/O |
1x USB-C Input
|
| Expansion Slots |
No
|
Format Support
| Input Video Format |
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 59.94 fps
576i / 625 lines 50 fps
|
| Output Video Format |
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
|
| Embedded Audio |
HDMI/SDI
|
Standards
| Video Standard Compliance |
SMPTE 259M/292M/296M/424M/425M-A/425M-B
|
| HDCP Support |
Yes, Version 2.2
|
Hardware
| Tally Light |
Yes
|
| OS Compatibility |
macOS 10.14.15 or Later
Windows 10
|
Power
| Power I/O |
1x USB-C (4.4 to 5.2 VDC ) Input
|
| Power Consumption |
2.5 W
|
Environmental
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
0 to 90%
|
General
| Dimensions |
3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm
|
| Weight |
5.29 oz / 150 g
|
Packaging Info
| Package Weight |
0.84 lb
|
| Box Dimensions (LxWxH) |
6.1 x 4.1 x 2.8"
|
What's in the Box:
- Blackmagic Design Micro Converter SDI to HDMI 3G (with Power Supply)
- 100-240 VAC Power Supply
- 4 x Socket Adapter
-
Limited 3-Year Warranty
