- 1 x 12G-SDI Input, 1 x HDMI Output
- 1 x 12G-SDI Loop Output
- Selectable SD/HD Level A/B SDI Ports
- Supports up to DCI 4K60 Resolution I/O
- Automatic Input Signal Detection
- Compact, Rugged Design
- Embedded Audio, USB Type-C Power
- A Power Supply Is Included
- LED Video & Power Signal Indicators
Overview

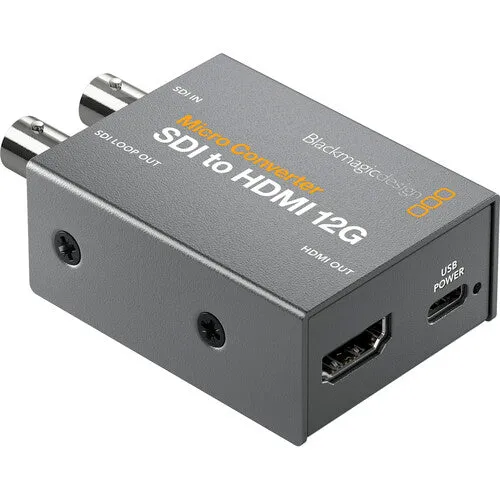

Super compact and rugged, the Blackmagic Design Micro Converter SDI to HDMI 12G enables you to link SDI cameras or computers to pro-style HDMI monitors, projectors, or displays, and it features a 33-point LUT for color calibration. This compact converter has one 12G-SDI input, one 12G-SDI loop output, and one HDMI output. It auto-detects and matches your SDI input to the HDMI output and is compatible with input/output resolutions up to DCI/UHD 4K60.
The pocket-sized Micro Converter SDI to HDMI 12G features timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port enables the SDI to HDMI 12G converter to easily connect to and be powered by adapters, monitors, laptops, or desktop computers, and it also facilitates firmware updates from a Windows or macOS computer. A power supply and an international plug adapter set is included with the converter.
Key Specs
| Video Inputs |
1x BNC (12G-SDI) Female
|
| Audio Inputs |
No
|
| Video Outputs |
1x HDMI (2.0) Female
1x BNC (12G-SDI) Female (Loop Output)
|
| Audio Outputs |
No
|
| Other I/O |
1x USB-C Control, Firmware Input
|
| Expansion Slots |
No
|
Format Support
| Input Video Format |
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
|
| Output Video Format |
HDMI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
|
| Embedded Audio |
HDMI/SDI
|
Standards
| Video Standard Compliance |
SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084
|
| HDCP Support |
Yes, Version 2.2
|
| HDR Support |
Not Specified by Manufacturer
|
Hardware
| OS Compatibility |
macOS 10.15.15 or Later
macOS 11.1 or Later
Windows 10
|
Power
| Power I/O |
1x USB-C (4.4 to 5.2 VDC ) Input
|
| Power Consumption |
Device: 4 W
|
Environmental
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
0 to 90% ()
|
General
| Dimensions |
3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm
|
| Weight |
5.29 oz / 150 g
|
Packaging Info
| Package Weight |
0.85 lb
|
| Box Dimensions (LxWxH) |
5.7 x 4 x 2.8"
|
What's in the Box:
- Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply
- Power Supply
- International Plug Set
-
Limited 3-Year Manufacturer Warranty
