Blackmagic Design Micro Converter HDMI to SDI 3G (with Power Supply)

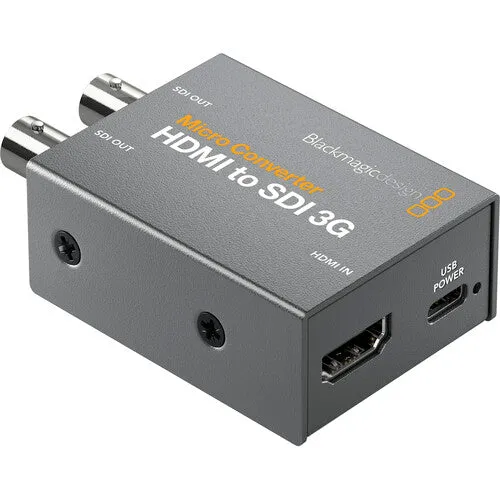

Product image 1
1 / 4

Blackmagic Design Micro Converter HDMI to SDI 3G (with Power Supply)

Key Features
  • 1 x HDMI Input, 2 x SD/HD/3G-SDI Outputs
  • Selectable SD/HD Level A/B SDI Ports
  • Supports up to 1080p60 Resolution I/O
  • USB Power/SDI Re-Clocking/Timecode
  • Automatic Input Signal Detection
  • Compact, Rugged Design
  • Embedded Audio
  • LED Video & Power Signal Indicators
  • AC Power Supply & Socket Adapters



Overview

Super compact and rugged, the Blackmagic Design Micro Converter HDMI to SDI 3G enables you to link HDMI cameras or computers to pro-style SDI (BNC) monitors or components. You can also use several units to extend HDMI over long distances using SDI cable. This compact converter has one HDMI input and two 3G-SD/HD/SDI outputs that can be set to Level A or B. It auto-detects and matches your HDMI input to the SDI output and is compatible with input/output resolutions up to 1080p60. The Micro Converter HDMI to SDI 3G features HDMI timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps.

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the HDMI to SDI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.

Key Specs

Video Inputs
1x HDMI (2.0)
Audio Inputs
No
Video Outputs
2x BNC (3G-SDI)
Audio Outputs
No
Other I/O
1x USB-C Input
Expansion Slots
No
Format Support
Input Video Format
HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Output Video Format
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Embedded Audio
HDMI/SDI
Standards
Video Standard Compliance
SMPTE 259M/292M/296M/424M/425M
HDCP Support
Yes, Version 2.2
Hardware
OS Compatibility
macOS 10.14.15 or Later
Windows 10
Power
Power I/O
1x USB-C (4.4 to 5.2 VDC ) Input
Power Consumption
2 W
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90%
General
Dimensions
3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm
Weight
5.29 oz / 150 g
Packaging Info
Package Weight
0.83 lb
Box Dimensions (LxWxH)
5.7 x 4.2 x 2.9"

What's in the Box:

  • Blackmagic Design Micro Converter HDMI to SDI 3G (with Power Supply)

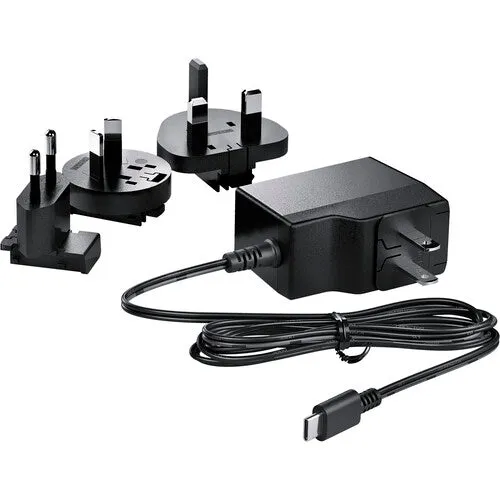

  • 100-240 VAC Power Supply
  • 4 x Socket Adapter
  • Limited 3-Year Warranty
Key Features
  • 1 x HDMI Input, 2 x SD/HD/3G-SDI Outputs
  • Selectable SD/HD Level A/B SDI Ports
  • Supports up to 1080p60 Resolution I/O
  • USB Power/SDI Re-Clocking/Timecode
  • Automatic Input Signal Detection
  • Compact, Rugged Design
  • Embedded Audio
  • LED Video & Power Signal Indicators
  • AC Power Supply & Socket Adapters



Overview

Super compact and rugged, the Blackmagic Design Micro Converter HDMI to SDI 3G enables you to link HDMI cameras or computers to pro-style SDI (BNC) monitors or components. You can also use several units to extend HDMI over long distances using SDI cable. This compact converter has one HDMI input and two 3G-SD/HD/SDI outputs that can be set to Level A or B. It auto-detects and matches your HDMI input to the SDI output and is compatible with input/output resolutions up to 1080p60. The Micro Converter HDMI to SDI 3G features HDMI timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps.

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the HDMI to SDI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.

Key Specs

Video Inputs
1x HDMI (2.0)
Audio Inputs
No
Video Outputs
2x BNC (3G-SDI)
Audio Outputs
No
Other I/O
1x USB-C Input
Expansion Slots
No
Format Support
Input Video Format
HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Output Video Format
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Embedded Audio
HDMI/SDI
Standards
Video Standard Compliance
SMPTE 259M/292M/296M/424M/425M
HDCP Support
Yes, Version 2.2
Hardware
OS Compatibility
macOS 10.14.15 or Later
Windows 10
Power
Power I/O
1x USB-C (4.4 to 5.2 VDC ) Input
Power Consumption
2 W
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90%
General
Dimensions
3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm
Weight
5.29 oz / 150 g
Packaging Info
Package Weight
0.83 lb
Box Dimensions (LxWxH)
5.7 x 4.2 x 2.9"

What's in the Box:

  • Blackmagic Design Micro Converter HDMI to SDI 3G (with Power Supply)
  • 100-240 VAC Power Supply
  • 4 x Socket Adapter
  • Limited 3-Year Warranty
$78.69
Blackmagic Design Micro Converter HDMI to SDI 3G (with Power Supply)—
$78.69
