- Simultaneous SDI to HDMI & HDMI to SDI
- 1 x SD/HD/3G-SDI & 1x HDMI Input/Output
- Supports up to DCI 2K60 Video
- BMPCC Control & Tally via SDI Switcher
- USB Power/SDI Re-Clocking/HDMI Timecode
- Automatic Input Signal Detection
- Embedded HDMI & SDI Input/Output
- LED Video &Power Signal Indicators
- AC Power Supply & Socket Adapters
Overview

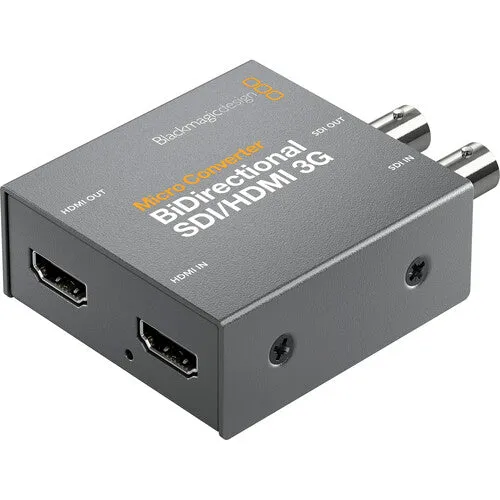

Easily combine SDI and HDMI components in your video setup with the Blackmagic Design Micro Converter Bidirectional SDI/HDMI 3G. This compact bidirectional converter can simultaneously convert SDI to HDMI and vice versa, even when using different standards, and it supports resolutions up to DCI 2K in SDI and 1080p60 in HDMI. It also offers camera control conversion for Blackmagic HDMI cameras like the BMPCC 4K or 6K, enabling you to use them with an SDI-based live switcher. The Micro Converter Bidirectional SDI/HDMI 3G features HDMI timecode support, SDI re-clocking for stability over long cable runs, support for a wide range of pro broadcast resolutions including cine-style 48 fps, and both HDMI and SDI embedded audio input and output.

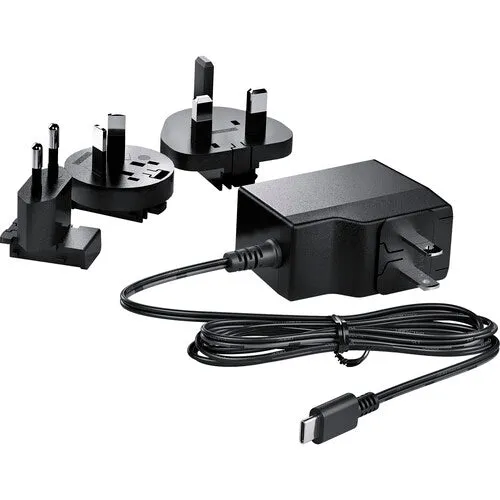

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the Bidirectional SDI/HDMI converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.
Key Specs
| Video Inputs |
1x BNC (3G-SDI)
1x HDMI (2.0)
|
| Audio Inputs |
No
|
| Video Outputs |
1x BNC (3G-SDI)
1x HDMI (2.0)
|
| Audio Outputs |
No
|
| Other I/O |
1x USB-C Input
|
| Expansion Slots |
No
|
Format Support
| Input Video Format |
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF at 25/29.97/30 fps
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF at 25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
480i / 525 lines at 59.94 fps
576i / 625 lines at 50 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
480i / 525 lines at 29.97 fps
576i / 625 lines at 25 fps
|
| Output Video Format |
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF at 25/29.97/30 fps
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF at 25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
480i / 525 lines at 29.97 fps
576i / 625 lines at 25 fps
|
| Embedded Audio |
HDMI/SDI
|
Standards
| Video Standard Compliance |
SMPTE 259M/292M/296M/424M/425M-A/425M-B
|
| HDR Support |
No
|
Hardware
| Tally Light |
No
|
| Wireless |
No
|
| OS Compatibility |
macOS 10.15
macOS 11.1 or Later
Windows 10 (64-Bit Only)
|
Power
| Power I/O |
1x USB-C (4.4 to 5.2 VDC ) Input
|
| Power Consumption |
2.5 W
|
Environmental
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
0 to 90%
|
General
| Dimensions |
3.13 x 1.8 x 0.98" / 79.5 x 45.7 x 24.89 mm
|
| Weight |
5.9 oz / 167 g
|
Packaging Info
| Package Weight |
0.95 lb
|
| Box Dimensions (LxWxH) |
5.75 x 4.85 x 2.9"
|
What's in the Box:
- Blackmagic Design Micro Converter Bidirectional SDI/HDMI 3G (with Power Supply)
- 100-240 VAC Power Supply
- 4 x Socket Adapter
-
Limited 3-Year Manufacturer Warranty
