Blackmagic Design HyperDeck Studio HD Plus

Product image 1
1 / 2

Blackmagic Design HyperDeck Studio HD Plus

Key Features
  • Records up to 4K DCI at 30 fps
  • Plays Back up to 3840 x 2160 at 30 fps
  • 1 x 6G-SDI Input, 1 x HDMI 2.0 Input
  • 1 x HDMI 2.0 and 2 x 6G-SDI Outputs
  • Records ProRes, DNxHD, and H.264
  • Records in H.264 SDI 4:2:2 10-Bit
  • Front-Panel Buttons, Jog Wheel, LCD
  • Timecode and Reference Input/Output
  • 1/2 Rack-Mountable Form Factor
  • USB-C, 1G Ethernet, RS-422



Overview

Take a compact broadcast-quality record/playback deck with you on location, in the studio, or built into a rack with the Blackmagic Design HyperDeck Studio HD Plus. The 1 RU tall recorder is 1/2 of a rack wide and powers from 100 to 240 VAC or via an optional 12 VDC power supply for portability. Featuring one 6G-SDI input, one HDMI 2.0 input, two 6G-SDI outputs, and one HDMI 2.0 output, this unit is a compact recording/playout powerhouse. A loop-through output and 3G-SDI monitor output as well as reference and timecode in/out, allow this device to fit into a broadcast environment.



Key Specs

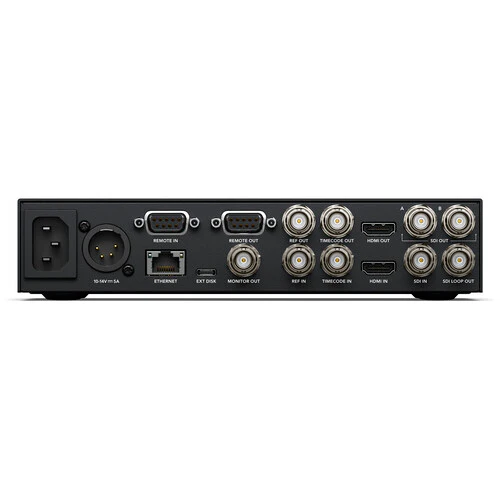

Connectivity
Video Inputs
1 x BNC, 6G-SDI
1 x HDMI 2.0 Type A
Video Output
1 x BNC, 6G-SDI Loop-Out
2 x BNC, 6G-SDI
1 x HDMI Type A, 2.0
1 x USB Type-C (Webcam or External Recording of SD, HD, 2K DCI)
1 x BNC, 3G-SDI (Monitor Out)
Timecode
In: 1 x BNC
Out: 1 x BNC
Reference
Tri-Sync or Black Burst
Input Connector: 1 x BNC
Output Connector: 1 x BNC
Audio Input
None (Embedded Audio Only, 16 Channels)
Audio Output
Headphone: 1 x 1/4" Phone
Device Control
2 x RS-422 Deck Control Port on DB9 Female
Ethernet
1 x RJ45 for Remote Operation
Media Interface
2 x SD Slots
Media Type: UHS I and UHS II
Format: ExFAT or HFS+
Standards
Supported Resolutions
4K
4096 x 2160p: 30/29.97/25/24/23.98
3840 x 2160p: 30/29.97/25/24/23.98

2K
2048 x 1080p: 0/29.97/25/24/23.98

HD
1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
1920 x 1080i: 60/59.94/50
1280 x 720p: 60/59.94/50

SD
NTSC
PAL
SDI Compliance
SMPTE 259M//292M/296M/372M/424M/425M Level A and B
SMPTE 2084
SMPTE 2108‑1
SDI Metadata Support
HD RP188 and Closed Captioning CEA‑708
HDR Metadata Supported on SDI
Video Sampling
4:2:2 YUV
Color Depth
10-Bit
Color Space
Rec. 601
Rec. 709
Rec. 2020
33-Point 3D LUTS Can Be Applied to SDI Monitor Out
HDR Support
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multi Rate Support
Autodetection of SD, HD, and 6G-SDI
Audio Sampling
Television Standard 48 kHz, 24-Bit
Supported Codecs
ProRes
HQ QuickTime
422 QuickTime
LT QuickTime
Proxy QuickTime for Formats up to 1080p60

DNxHD
220x
220x MXF
145
145 MXF
45
45 MXF for 720p and 1080p HD Formats up to 60 fps

H.264
SDI 4:2:2 10-Bit
High 4:2:0 8-Bit
Medium 4:2:0 8-Bit
Low 4:2:0 8-Bit for Progressive Formats up to 1080p60
System Requirements
Operating System
macOS: 10.15 (Catalina), 11.5 (Big Sur) or Later
Windows: 10 64-Bit
General
Rack Height
1 RU
Power Supply
AC
100 to 240 VAC, 50/60 Hz

DC
12 VDC; 1 x 4-Pin XLR

Consumption
100 W Max
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Relative Humidity
0 to 90% Non-Condensing
Dimensions
8.27 x 6.96 x 1.74" / 21.01 x 17.68 x 4.42 cm
Weight
1.8 lb / 0.82 kg



What's in the Box:

  • Blackmagic Design HyperDeck Studio HD Plus
  • Software CD
  • Limited 1-Year Manufacturer Warranty
