Blackmagic Design HyperDeck Studio HD Mini

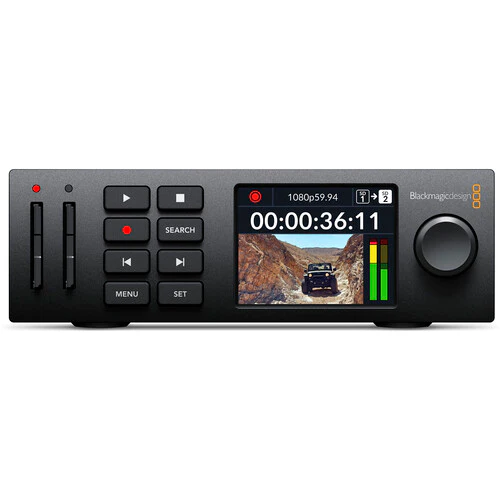

Product image 1
1 / 2

Blackmagic Design HyperDeck Studio HD Mini

Key Features
  • 1 x 3G-SDI Input
  • 1 x HDMI and 1 x 3G-SDI Outputs
  • Records ProRes, DNxHD, and H.264
  • Records in H.264 SDI 4:2:2 10-Bit
  • Front-Panel Buttons, Jog Wheel, LCD
  • Timecode and Reference Input/Output
  • 1/3 Rack-Mountable Form Factor
  • USB-C, 1G Ethernet, RS-422



Overview

Take a compact broadcast-quality record/playback deck with you on location, in the studio, or built into a rack with the Blackmagic Design HyperDeck Studio HD Mini. The 1 RU tall recorder is 1/3 of a rack wide and powers from 100 to 240 VAC or via an optional 12 VDC power supply for portability. Featuring one 3G-SDI input, one each HDMI and 3G-SDI output, and a USB-C webcam output, the recorder is flexible, enabling you to input, record, and output/stream simultaneously. Supporting both reference and timecode in/out, this unit fits perfectly into a broadcast environment, and you can use one recorder to create an ISO recording of each camera with perfect sync for live and post-production work.



Key Specs

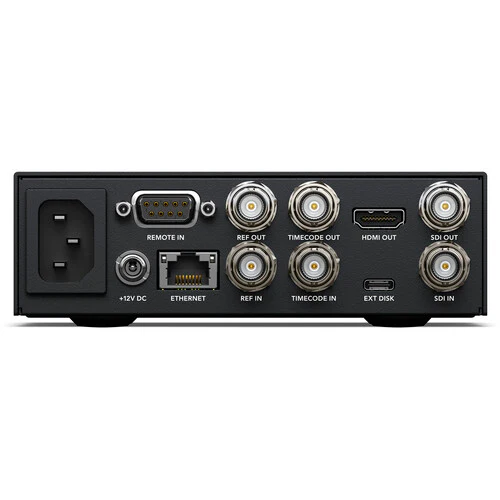

Connectivity
Video Inputs
1 x BNC, 3G-SDI
Video Output
1 x BNC, 3G-SDI
1 x HDMI Type A
1 x USB Type-C (Webcam or External Recording of SD, HD, 2K)
Timecode
In: 1 x BNC
out: 1 x BNC
Reference
Tri-Sync or Black Burst
Input Connector: 1 x BNC
Output Connector: 1 x BNC
Audio Input
None (Embedded Audio Only, 16 Channels)
Audio Output
None (Embedded Audio Only, 16 Channels SDI, 8 Channels HDMI)
Device Control
1 x RS-422 Deck Control Port on DB9 Female
Ethernet
1 x RJ45 for Remote Operation
Media Interface
2 x SD Slots
Media Type: UHS I and UHS II
Format: ExFAT or HFS+
Standards
Supported Resolutions
2K
2048 x 1080p: 30/29.97/25/24/23.98

HD
1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
1920 x 1080i: 60/59.94/50
1280 x 720p: 60/59.94/50

SD
NTSC
PAL
SDI Compliance
SMPTE 259M//292M/296M/372M/424M/425M Level A and B
SMPTE 2084
SMPTE 2108‑1
SDI Metadata Support
HD RP188 and Closed Captioning CEA‑708
HDR Metadata Supported on SDI
Video Sampling
4:2:2 YUV
Color Depth
10-Bit
Color Space
REC 601
REC 709
REC 2020
HDR Support
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multi Rate Support
Autodetection of SD and HD
Audio Sampling
Television Standard 48 kHz, 24-Bit
Supported Codecs
ProRes
  • HQ QuickTime
  • 422 QuickTime
  • LT QuickTime
  • Proxy QuickTime for Formats up to 1080p60



DNxHD

  • 220x
  • 220x MXF
  • 145
  • 145 MXF
  • 45
  • 45 MXF for 720p and 1080p HD Formats up to 60 fps

H.264

  • SDI 4:2:2 10-Bit
  • High 4:2:0 8-Bit
  • Medium 4:2:0 8-Bit
  • Low 4:2:0 8-Bit for Progressive Formats up to 1080p60
System Requirements
Operating System
macOS: 10.15(Catalina), 11.5 (Big Sur) or Later
Windows: 10 64-Bit
General
Rack Height
1 RU
Power Supply
AC
100 to 240 VAC, 50/60 Hz

DC
12 VDC; 1 x Locking 5.5 mm Barrel
Operating Temperature
41 to 122°F / 5 to 50°C
Storage Temperature
-4 to 113°F / -20 to 45°C
Relative Humidity
0 to 90% Non-Condensing
Dimensions
6.96 x 5.51 x 1.74" / 17.68 x 14 x 4.42 cm
Weight
1.8 lb / 0.82 kg



What's in the Box:

  • Blackmagic Design HyperDeck Studio HD Mini
  • Limited 1-Year Manufacturer Warranty
