- 8-Input 12G-SDI UHD 4K60 Live Switcher
- Redesigned Buttons and Layout
- Streaming Support, USB & M.2 Recording
- Blackmagic Cloud Integration
- Webcam Support, Runs Blackmagic OS
- 12G-SDI & HDMI Multiview Outputs
- Audio Mixing, Transitions, T-Bar, AUX
- Customizable Electronic LCDs
- Studio Camera Control
- Timecode, MADI, Talkback
Overview

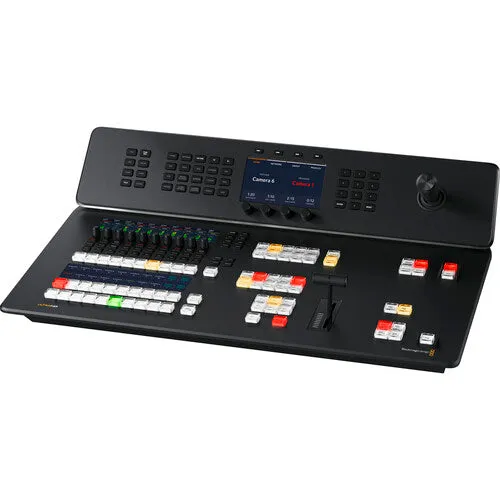

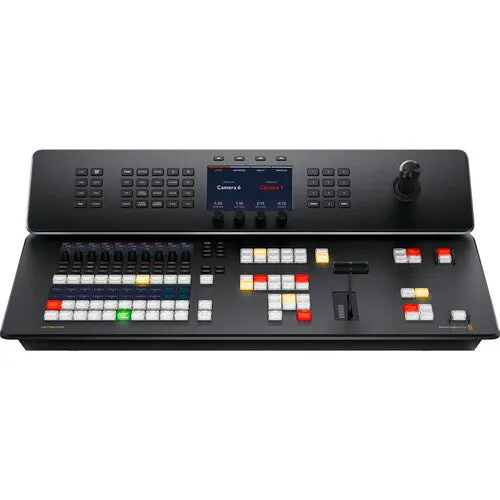

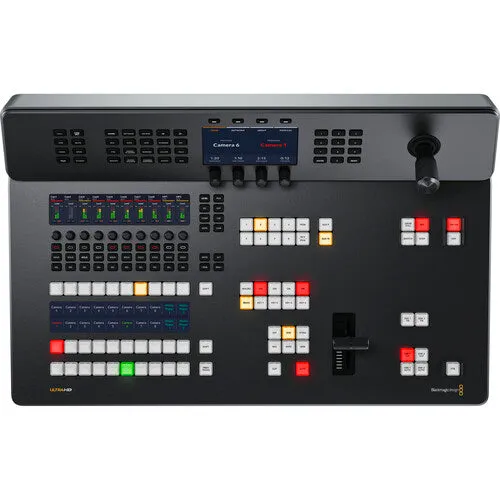

Add an all-in-one live streaming switcher to your television studio, remote production, or live venue with the Blackmagic Design ATEM Television Studio 4K8. This compact, redesigned live TV switcher is a great fit to any streaming production, providing eight 12G-SDI inputs that support up to UHD 4K60 video, built-in live streaming, USB webcam support, a 58-channel audio mixer, chroma keyers, DVE, transitions, media players, internal recording, and talkback support. The switcher is also compatible with the Blackmagic Cloud, so your program recordings can be available immediately from anywhere around the globe.
Key Specs
| Available M/E Layers |
1 M/E
|
| Effect Types |
1x DVE, Stinger
4x Chroma Key
7x Luma Key
|
| Downstream Keys |
2x Chroma, Luma, DVE
|
| Generators |
7x Pattern
2x Color
|
| Audio Mixing |
58-Channel Mixing
|
Processing
| Switching Type |
Pushbutton, Software, T-Bar
|
| Latency |
10 Lines
|
| Processing Resolution |
UHD 4K at 60
|
| Color Processing |
10-Bit 4:2:2 RGB
|
Input
| Number of Video Input Sources |
8
|
| Video Inputs |
8x BNC (12G-SDI) Female
|
| Input Video Format |
SDI (10-Bit 4:2:2 RGB)
UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/50/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
|
| Audio Inputs |
1x BNC MADI Female
1x 2RCA Stereo Analog Female
2x XLR 3-Pin Analog Female
1x XLR 5-Pin Female
|
| Embedded Audio Input |
SDI
|
Output
| Video Output Channels |
12
|
| Video Outputs |
12x BNC (12G-SDI) Female
|
| Output Video Format |
SDI (10-Bit 4:2:2 RGB)
UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
|
| Audio Outputs |
4x 1/4" TRS Analog Female
1x BNC MADI Female
1x XLR 5-Pin Analog Female
|
| Embedded Audio Output |
SDI
|
| Multiview Output |
16-Way Multiview
|
| Monitor Output |
1x HDMI
|
Connectivity
| Other I/O |
1x BNC Reference Input
1x BNC Reference Output
1x BNC Timecode
1x BNC Timecode
4x RJ45 LAN Input/Output
1x RJ45 Talkback Input/Output
1x RJ12 Remote Input/Output
2x USB-C Output
|
| Video Standard Compliance |
SMPTE 292M/296M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10
|
| Transport Protocols |
RTMP
|
Display
| Screen Resolution |
1366 x 768
|
Hardware
| OS Compatibility |
macOS 12 or Later / Windows 10 or Later
|
| OS Compatibility |
macOS 12 to 13 or Later
Windows 10 to 11
|
| Processor |
Not Specified by Manufacturer
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Power I/O |
1x IEC C14 (100 to 240 VAC ) Input
1x XLR 4-Pin (12 VDC ) Input
|
General
| Operating Conditions |
32 to 72°F / 0 to 40°C up to 90% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C up to 90% Humidity
|
| Dimensions |
23 x 14.8 x 6.38" / 58.4 x 37.6 x 16.21 cm
|
| Weight |
14.9 lb / 6.8 kg
|
Packaging Info
| Package Weight |
26.76 lb
|
| Box Dimensions (LxWxH) |
28.5 x 21.5 x 10"
|
What's in the Box:
- Blackmagic Design ATEM Television Studio 4K8
- Welcome Wallet with QR Code for Software Download
-
Limited 1-Year Manufacturer Warranty
