Blackmagic Design ATEM SDI Pro ISO Switcher

Product image 1
1 / 2

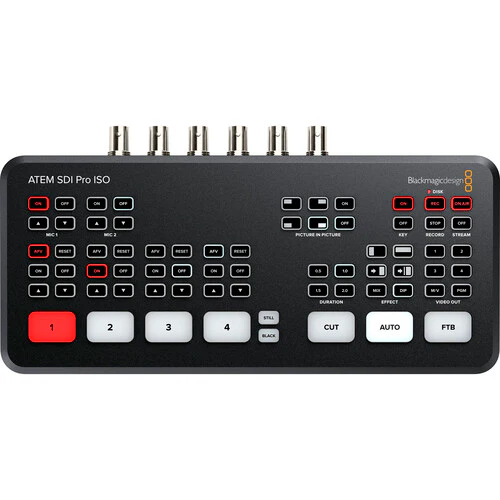

Blackmagic Design ATEM SDI Pro ISO Switcher

Key Features
  • 4-Channel Live Stream 3G-SDI Switcher
  • Program and 4 x Input ISO Recording
  • Generates DaVinci Resolve Project
  • Live Tally, Stream, and Record Status
  • Record Button, Channel Preview Multiview
  • 2-Channel Digital Audio Mixer per Source
  • 3G-SDI Output, Ethernet ATEM Control
  • Media Player, Computer Input Support
  • Upstream and Downstream Keyers
  • DVE Transition, Chroma/Luma Keyers



Overview

The Blackmagic Design ATEM ATEM SDI Pro ISO Switcher is a four-input live-production switcher with an integrated control panel designed for multi-camera live streaming up to HD video to the internet via Ethernet output. It features a USB output that allows you to record the program output as well as record the individual 3G-SDI inputs to an external USB drive (not included). In addition to recording the program stream and individual inputs, the ATEM Mini Pro ISO also records the embedded audio and analog audio inputs, generating a DaVinci Resolve project file of your live stream. This allows you to take your live production into DaVinci Resolve to make tweaks or adjustments using the source material that is already on your USB drive.



Key Specs

Available M/E Layers
5 M/E
Effect Types
DVE, Transition, Chroma Key
Generators
1x Pattern
2x Color
Audio Mixing
2-Channel Mixing
Processing
Switching Type
IR Remote, Pushbutton, Software
Input
Number of Video Input Sources
4
Video Inputs
4x BNC (3G-SDI)
Input Video Format
SDI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 56/59.94/60 fps
720p at 50/59.94/60 fps
Audio Inputs
2x 1/8" / 3.5 mm TRS Stereo Analog Female
Input Audio Format
Analog
Embedded Audio Input
SDI: 2-Channel (per Input)
Output
Video Output Channels
3
Video Outputs
2x BNC (3G-SDI)
1x USB-C
Output Video Format
SDI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
USB-C (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio Output
SDI
Multiview Output
Yes
Connectivity
Other I/O
1x RJ45 Control Input/Output
HDCP Support
No
Hardware
OS Compatibility
macOS 11 or Later / Windows 10 or Later
OS Compatibility
macOS 11
macOS 12 or Later
Windows 10
Windows 11
Processor
Not Specified by Manufacturer
Wi-Fi
No
Bluetooth
No
Power I/O
1x Barrel (12 VDC ) Input
Power Consumption
Device: 36 W
General
Operating Conditions
37 to 72°F / 5 to 40°C up to 90% Humidity
Storage Conditions
14 to 140°F / -10 to 60°C
Dimensions
9.35 x 4.67 x 1.38" / 23.75 x 11.86 x 3.51 cm
Weight
23.9 oz / 678 g



What's in the Box:

  • Blackmagic Design ATEM SDI Pro ISO Switcher
  • 12 VDC Power Supply with International Plug Adapters
  • Limited 1-Year Manufacturer Warranty
