- 4-Channel Live Stream HDMI Switcher
- Program and 4 x Input ISO Recording
- Generates DaVinci Resolve Project
- Live Tally, Stream, and Record Status
- Record Button, Channel Preview Multiview
- 2-Channel Digital Audio Mixer per Source
- HDMI Output, Ethernet ATEM Control
- Media Player, Computer Input Support
- Upstream and Downstream Keyers
- DVE Transition, Chroma/Luma Keyers
Overview

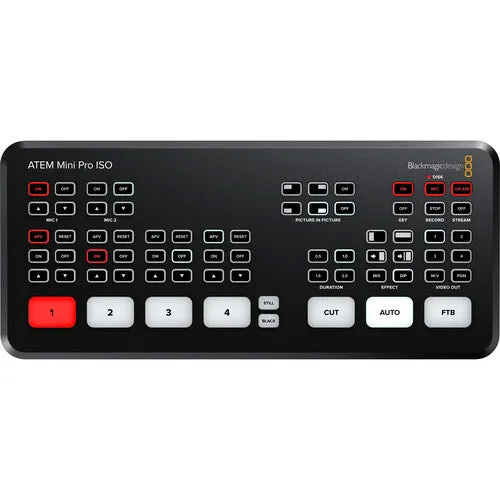

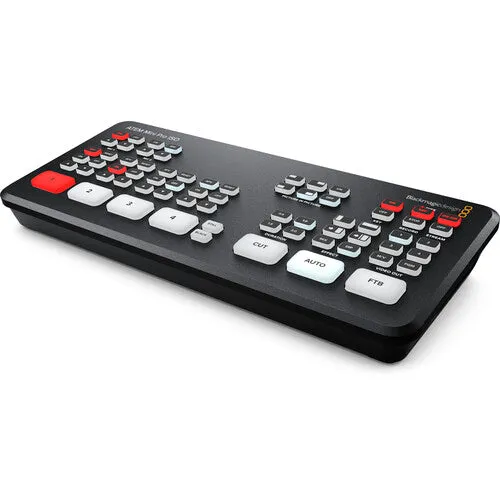

The Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher is a four-input live production switcher with an integrated control panel designed for multicamera live streaming up to HD video to the internet via Ethernet output. It features a USB output that allows you to record the program output as well as record the individual HDMI inputs to an external USB drive (not included). In addition to recording the program stream and individual inputs, the ATEM Mini Pro ISO also records the embedded audio and analog audio inputs, generating a DaVinci Resolve project file of your live stream. This allows you to take your live production into DaVinci Resolve to make tweaks or adjustments using the source material that is already on your USB drive.
Key Specs
| Available M/E Layers |
5 M/E
|
| Effect Types |
1x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
|
| Downstream Keys |
1x Chroma, DVE
2x Luma
|
| Generators |
1x Pattern
2x Color
|
| Audio Mixing |
2-Channel Mixing
|
Processing
| Switching Type |
Pushbutton
|
| Color Processing |
10-Bit 4:2:2 YUV
|
Input
| Number of Video Input Sources |
4
|
| Video Inputs |
4x HDMI Female
|
| Input Video Format |
HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
|
| Audio Inputs |
2x 1/8" / 3.5 mm TRS Stereo Analog Female
|
| Input Audio Format |
Analog
|
| Embedded Audio Input |
HDMI: 2-Channel (per Input)
|
Output
| Video Output Channels |
1
|
| Video Outputs |
1x HDMI
|
| Output Video Format |
HDMI / RJ45 (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
|
| Embedded Audio Output |
HDMI: 2-Channel (per Output)
|
| Multiview Output |
Yes
|
| Monitor Output |
1x HDMI
|
Connectivity
| Other I/O |
1x RJ45 Control, Firmware, LAN, Sync, Tally, Timecode Input/Output
1x USB-C Control, Firmware Input/Output
|
| IP Video |
H.264:
1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
|
| Transport Protocols |
RTMP
|
| Simultaneous Streams |
1 Streams
|
Hardware
| OS Compatibility |
macOS 10.14 or Later / Windows 10 or Later
|
| OS Compatibility |
macOS 10.14 or Later
Windows 10
|
| Processor |
Not Specified by Manufacturer
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Power I/O |
1x Barrel (12 VDC ) Input
|
| Power Consumption |
36 W
|
General
| Operating Conditions |
41 to 104°F / 5 to 40°C up to 90% Humidity
|
| Storage Conditions |
14 to 140°F / -10 to 60°C
|
| Dimensions |
9.35 x 4.07 x 1.38" / 23.75 x 10.34 x 3.51 cm
|
| Weight |
19.4 oz / 550 g
|
Packaging Info
| Package Weight |
2.29 lb
|
| Box Dimensions (LxWxH) |
11.2 x 6.5 x 4.6"
|
What's in the Box:
- Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher
- 12V Power Supply with International Adapters
-
Limited 1-Year Warranty
