Atomos ZATO CONNECT 5.2" Network-Connected Video Monitor & Recorder 1080p60

Product image 1
1 / 4

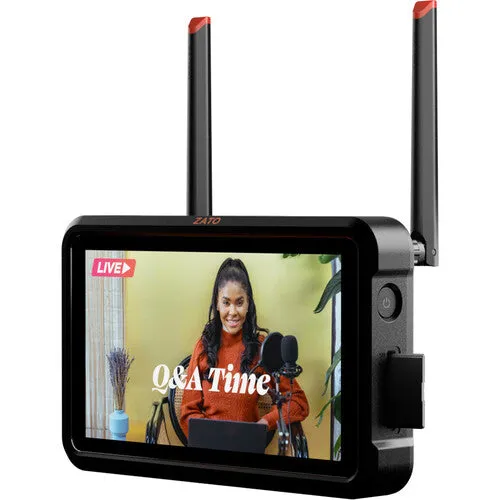

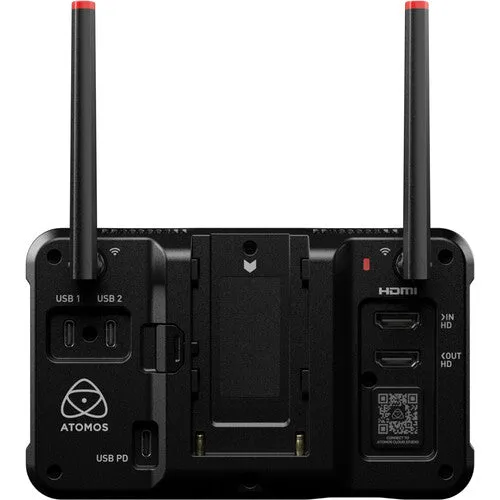

Atomos ZATO CONNECT 5.2" Network-Connected Video Monitor & Recorder 1080p60

Key Features

  • 5.2" 1920 x 1080 Touchscreen Display
  • 1000 cd/m² Brightness
  • 2 x HDMI, 2 x USB Type-C
  • Records up to 1080p Video
  • Wi-Fi 5, Gigabit Ethernet
  • Simultaneous Record and Stream Video
  • Audio Mixing Capabilities
  • ATOMOS Cloud Studio, AtomOS Lite
  • Power via L-Series Battery or USB Input



Overview

Simultaneously stream and record HDMI and USB video with the ZATO CONNECT from Atomos and its 1920 x 1080 resolution 5.2" touchscreen display. The ZATO CONNECT works as a gateway to the ATOMOS Cloud Studio software thanks to its Wi-Fi 5, Gigabit Ethernet, and cellular hotspot connectivity. This allows you to fully customize your livestreaming experience by switching between video sources and mixing different audio sources—all with a single, compact device small enough to mount on a DSLR camera rig.

Key Specs

Display Size
5.2" / 13.2 cm
Native Resolution
1920 x 1080
Touchscreen
Yes
HDR Support
No
Video I/O
1x HDMI 1.4 Input
1x HDMI 1.4 Output
1x USB-C (Unspecified Signal) Input
1x USB-C (Unspecified Signal) Output
Media/Memory Card Slot
Single Slot: SD/SDHC/SDXC (UHS-I) [128 GB Maximum / Supports Recording]
Video Format
HDMI/USB
1080p: 59.94/50/29.97/25/23.98
720p: 59.94/50/29.97/23.98
Battery Type
1x L-Series
Power Consumption
20 W
Mounting
1x 1/4"-20 Female (Top)
1x 1/4"-20 Female (Bottom)
Display
Panel Type
IPS-Type LCD
Display Size
5.2" / 13.2 cm
Native Resolution
1920 x 1080
Aspect Ratio
16:9
Viewing Angle
Horizontal: 178°
Vertical: 178°
Touchscreen
Yes
Maximum Brightness
1000 nits / cd/m2
Color Support
1.07 Billion Colors (8-Bit+FRC)
HDR Support
No
Pixels Per Inch (ppi)
423 ppi
LUT Support
No
Image Controls
Customizable Aspect Ratios, Image Flip, Picture-in-Picture, Screen Markers
Inputs / Outputs
Antenna I/O
2x RP-SMA
Video I/O
1x HDMI 1.4 Input
1x HDMI 1.4 Output
1x USB-C (Unspecified Signal) Input
1x USB-C (Unspecified Signal) Output
Embedded Audio
HDMI: 2-Channel
Audio I/O
1x 1/8" / 3.5 mm Input
1x 1/8" / 3.5 mm Output
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1x USB-C Input
Other I/O
No
Media/Memory Card Slot
Single Slot: SD/SDHC/SDXC (UHS-I) [128 GB Maximum / Supports Recording]
File System Support
exFAT
Encryption
No,
Wi-Fi
Wi-Fi 5 (802.11ac)
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
HDMI/USB
1080p: 59.94/50/29.97/25/23.98
720p: 59.94/50/29.97/23.98
Audio Format
AAC, PCM Audio
Wireless Video Compression
Compressed
Timecode Support
No
Recording
Pulldown Conversion
No
Camera Trigger
No
Pre-Roll Record
No
Encoding Formats
x
H.264
Maximum Audio Tracks
2
Closed Caption Support
No
Reference Input
No
Power
Input Power
6.2 to 16.8 VDC
Battery Type
1x L-Series
Power Consumption
20 W
Mounting
Mounting
1x 1/4"-20 Female (Top)
1x 1/4"-20 Female (Bottom)
General
Environmental Resistance
No
Certifications
CE
Operating Conditions
Up to 104°F / 40.0°C
Material of Construction
Polycarbonate
Dimensions
5.9 x 3.6 x 1.2" / 151 x 91.5 x 29.5 mm
Weight
8.64 oz / 245.00 g
Packaging Info
Package Weight
1.65 lb
Box Dimensions (LxWxH)
7.75 x 5.75 x 3.5"

What's in the Box:

  • Atomos ZATO CONNECT 5.2" Network-Connected Video Monitor & Recorder 1080p60
  • 2 x Wi-Fi Antenna
  • White Antenna Cap
  • Red Antenna Cap
  • Yellow Antenna Cap
  • Black Antenna Cap
  • Green Antenna Cap
  • 2 x Antenna Top Cap
  • 2 x Antenna Mount Cover
  • USB Type-C to USB Type-C Cable
  • Antenna Storage Pouch
  • Screen Cloth
  • Limited 1-Year Manufacturer Warranty
