Key Features

• 7" 1920 x 1200 Touchscreen Display
• 4K60 HDMI 2.0 In/Out, 2K60 3G-SDI In/Out
• 2200 cd/m² Brightness
• HDMI/SDI Cross Conversion

Overview

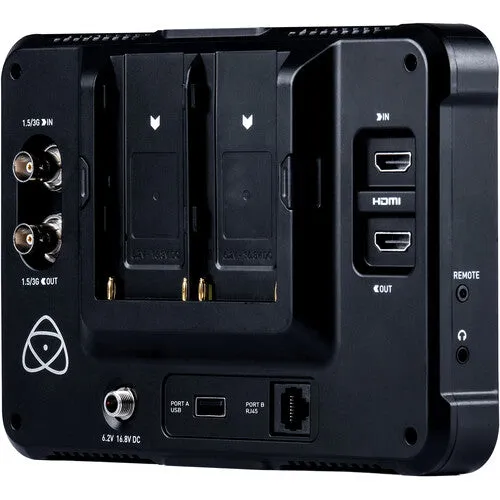

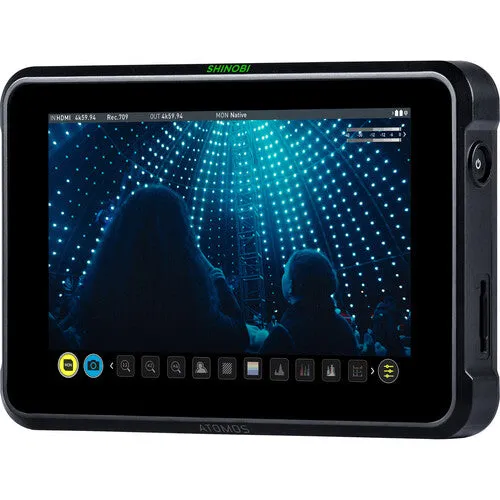

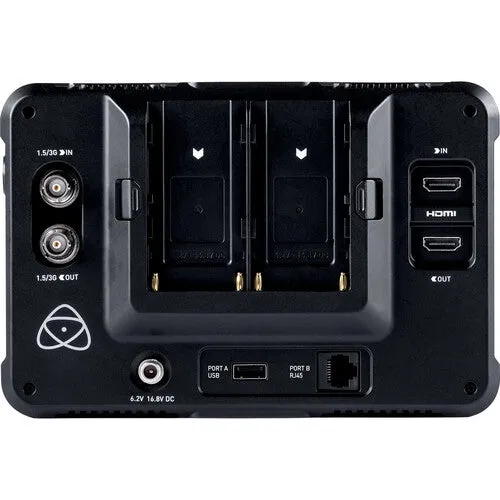

Add a bright, high-resolution monitor to view your 4K/2K footage from a cinema camera such as a Z CAM E2, Panasonic BGH1, or RED KOMODO with the Shinobi 7" 4K HDMI/SDI Monitor from Atomos. This 7" on-camera monitor features a 1920 x 1200 10-bit FRC IPS display with a brightness of 2200 cd/m², which makes it suitable for use in both exterior and interior conditions. This larger model improves on the original Shinobi as it adds 3G-SDI input and loop output up to 2K60, HDMI 2.0 input and loop output up to 4K60, signal cross conversion, a camera control port, dual L-series battery slots, and future possibilities with its built-in USB and RJ45 ports.

Key Specs

Display Size	7.0" / 17.8 cm
Native Resolution	1920 x 1200
Touchscreen	Yes
HDR Support	Yes, Advanced HDR
Video I/O	1x HDMI 2.0 Input 1x BNC (3G-SDI) Input 1x HDMI 2.0 Loop Output 1x BNC (3G-SDI) Loop Output
Media/Memory Card Slot	Single Slot: SD/SDHC/SDXC
Video Format	HDMI (8/10-Bit 4:2:2) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI (8/10-Bit 4:2:2) DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Battery Type	2x L-Series
Power Consumption	4 W (Typical) 7 W (Maximum)
Mounting	2x 1/4"-20 Female
