Yamaha PX3 Stereo Power Amplifier (300W at 8 Ohms)

Product image 1
1 / 4

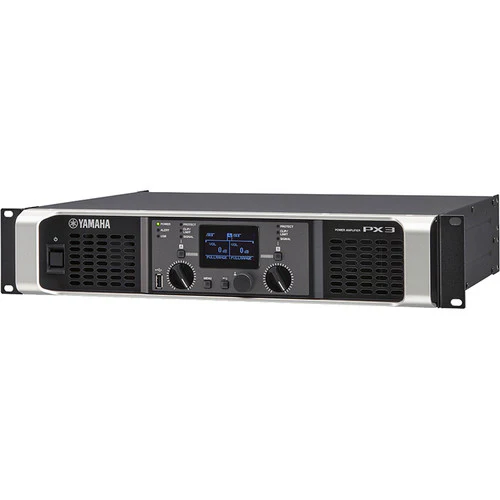

Yamaha PX3 Stereo Power Amplifier (300W at 8 Ohms)

Key Features
  • 300W per Channel at 8 Ohms
  • Efficient Class-D Amplifier
  • Custom LSI Chip with PLL Technology
  • Power Boost Mode
  • Digital Routing of Inputs & Outputs
  • XLR, 1/4", SpeakON & Binding Post
  • PEQ, Crossover, Filters, Delay
  • D-Contour Multi-Band Dynamic Processing

Overview

The Yamaha PX3 Stereo Power Amplifier delivers 300W at 8 Ohms in a lightweight chassis and is suitable for a wide variety of sound-reinforcement applications. Part of the company's PX Series of power amplifiers, it features a Class-D engine with a single custom LSI chip, and uses PLL technology for higher efficiency and lower noise. The Power-Boost mode combines the power output from two channels into one, achieving significantly higher single-channel power levels (the number of channels available is then halved).

The on-board DSP functions include a PEQ, a delay, a crossover, and a limiter. They also allow for detailed configuration of parameters such as input & output routing, input sensitivity, amp gain, and speaker impedance. The D-Control multi-band dynamic processor delivers a clear and consistent sound at any output level by shaping the frequency response of each speaker for either front-of-house or monitor configurations.

The Configuration Wizard helps save time during setup by assigning optimized speaker settings that match your system configuration. It can be used in basic mode for quick setup or advanced mode for more precise control over DSP parameters. You can store up to eight presets, which can be saved to a USB drive for use with other amplifiers and setups.

For secure operation, the panel-locking function ensures that your settings remain safe. With its sturdy frame and carrying handle, the PX3 is built to withstand extended road use.



Key Specs

Amplifier
Number of Channels
2
Amplifier Power Rating
8 Ohms:
300 W per Channel
600 W Bridged
4 Ohms:
500 W per Channel
1000 W Bridged
2 Ohms:
300 W per Channel
Amplifier Class
Class-D
Performance
Frequency Response
20 Hz to 20 kHz ±1 dB (at 1 W, 8 Ohms)
Input Impedance
10 Kilohms (Unbalanced)
20 Kilohms (Balanced)
Max Gain
35.1 dB (at 8 Ohms)
Max Input Level
+24 dBu
SNR
100 dB
THD+N
0.1% (1 kHz, at 10 W)
0.3% (1 kHz, at 1/2 Power)
Crosstalk
< -60 dB
Signal Processing
Sample Rate
48 kHz
AD/DA Conversion
A/D: 24-Bit, 128 x Over-Sampling
D/A: 24-Bit, 128 x Over-Sampling
Audio Delay
Adjustable Up to 74 ms
EQ
6-Band Parametric EQ
Filters
High-Pass:
20 Hz to 20 kHz
Low-Pass:
20 Hz to 20 kHz
Limiting
Yes
Connectivity

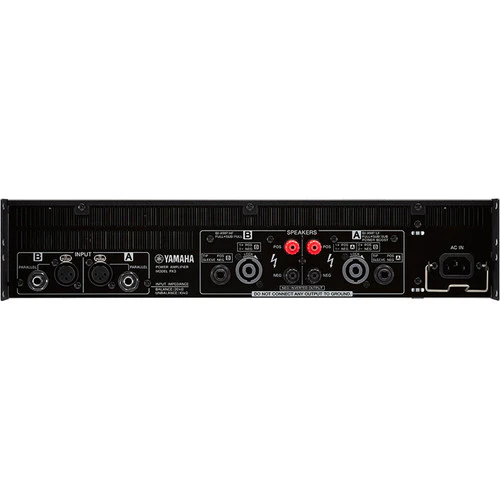

Analog Audio I/O
2x XLR 3-Pin Input
2x 1/4" TRS Input
2x speakON NL4 Output
2x Binding Post Pair Output
2x 1/4" TS Output
USB I/O
1x USB-A 2.0
Power
AC Input Power
120 VAC, 60 Hz
Power Consumption
4 Ohms:
160 W (1/8 Power)
55 (Idle)
Physical
Cooling
2x Fan (Variable Speed)
Operating Conditions
32 to 104°F / 0 to 40°C
Storage Conditions
-4 to 140°F / 0 to 40°C
Dimensions
18.9 x 3.5 x 15.2" / 480.0 x 88.0 x 387.4 mm
Weight
15.2 lb / 6.9 kg
Packaging Info
Package Weight
19.5 lb
Box Dimensions (LxWxH)
21.75 x 21.75 x 7.5"



What's in the Box:

  • Yamaha PX3 Stereo Power Amplifier (300W at 8 Ohms)
  • AC Power Cord
  • USB Cap
  • Limited 3-Year Manufacturer Warranty
