• Load Capacity: 22.0 lb
• Ball-and-Socket Tension Control
• 360° Pan with Independent Lock
• Up to 90° Portrait Angle Tilt
• Arca-Type Compatible Clamp
• Dual, Built-In Bubble Levels
• Quick Release Plate Retaining Pin
• QS-60 V2 Quick Release Plate
• 1/4"-20 Mount, Non-Slip Surface
• Aluminum-Alloy Construction


Overview

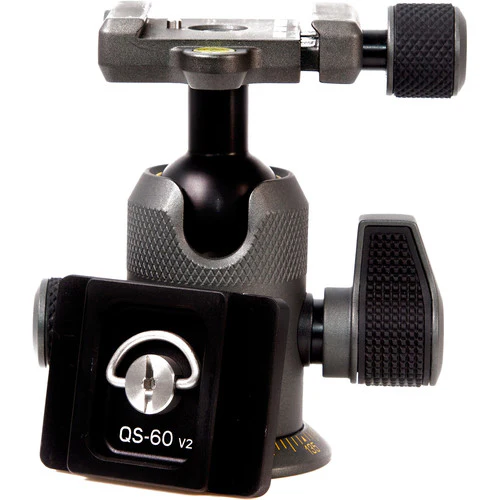

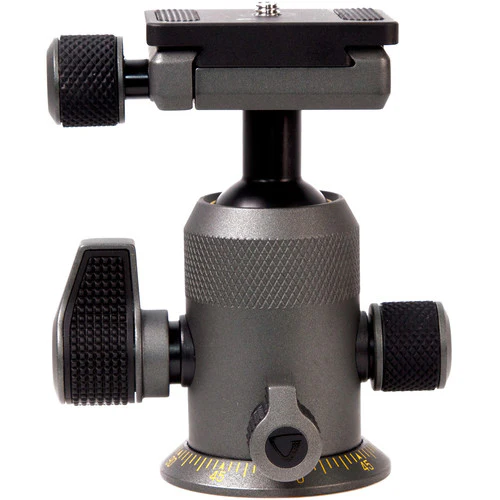

The Vanguard Alta BH-100 is an Arca-type ball head that has a load capacity of 22.0 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount.

Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the included QS-60 V2 Quick Release Plate. The quick release plate can be attached or removed from the integrated clamp located at the top of the head's ball-and-socket joint by tightening or loosening the clamp's knurled, locking knob. Within the recessed surface between the clamp's jaws is a retaining pin.

This pin prevents an installed QS-60 V2 Quick Release Plate from accidentally sliding off when the clamp is opened. The quick release plate features a rubberized, non-slip platform while two built-in bubble levels along the edges of the clamp accommodate landscape or portrait orientations.

Key Specs
