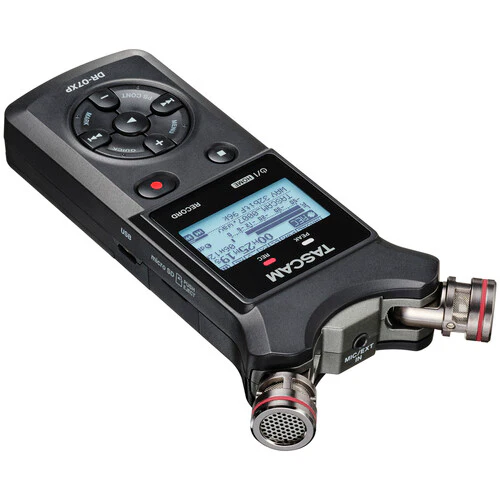

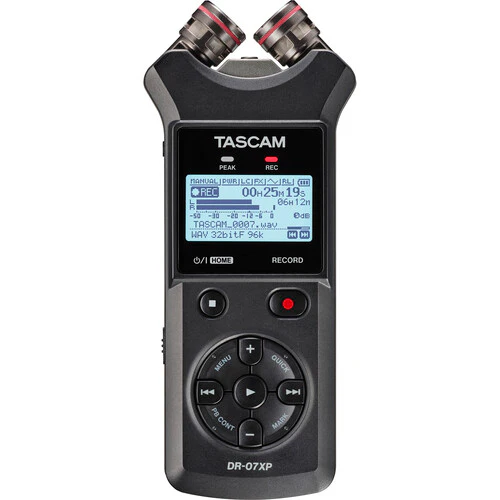

TASCAM DR-07XP 2-Channel 32-Bit Float Portable Audio Recorder

Product image 1
1 / 2

TASCAM DR-07XP 2-Channel 32-Bit Float Portable Audio Recorder

Key Features

  • Speech, Effects, and Music Recording
  • Adjustable A/B or X/Y Onboard Mics
  • 3.5mm Mic/Line Input with Plug-In Power
  • Built-In Tuner, EQ, and Reverb
  • Records in 32-Bit Float up to 96 kHz
  • 3.5mm Line/Headphone Output, Speaker
  • Auto Recording & Prerecording Functions
  • Battery Life up to 17.5 Hours
  • Supports microSDXC Cards up to 512GB
  • Auto Level, Limiter, and Low-Cut Filters



Overview

For speech, sound effects, and live music recording applications, the TASCAM DR-07XP portable handheld recorder is capable of capturing two tracks of audio at 32-bit float, high-resolution with no external microphones required. Its adjustable onboard cardioid condenser mics can be configured in an A/B or X/Y arrangement for spacious stereo imaging of your source. Equally adept as a handheld device or stand-mounted or camera-mounted setups, the DR-07XP can handle anything from sampling sessions and recitals to interviews and podcasts.

Flexible powering methods like batteries, USB bus power, or an AC adapter, make the DR-07XP well suited for on-the-go recording, all-day video shoots, and computer-based audio production. Need to patch in a lavalier mic or an outboard mixer? The DR-07XP's 3.5mm mini-jack input accommodates mic- or line-level signals and can supply plug-in power if needed. Whether you use the built-in mics or an external source, selectable modes such as peak reduction, limiting, and auto level give you options for achieving clean and undistorted recordings.



Key Specs

Portable Recorder
Form Factor
Handheld Recorder
Number of Tracks
WAV:
2
Number of Input Channels
2 (2 x Mono, 1 x Stereo)
Maximum Sampling Rate
96 kHz / 32-Bit Float
Microphone
Built-In Cardioid Condenser Stereo Pair, A/B, X/Y Configuration
Number of Microphone Inputs
1
Built-In Speaker
Yes: 0.3 W Mono
Display
Monochrome LCD (Backlit)
Memory Card Support
microSD
microSDHC
microSDXC (Up to 512 GB)
Internal Storage
No
Special Features
Overdubbing, Voice Activation
Recording
Audio File Formats
BWF, MP3, WAV
Sample Rates
WAV:
44.1 / 48 / 96 kHz
Bit Depth
16 / 24 / 32-Bit
Bit Rates
32 to 320 kb/s (Record)
32 to 320 kb/s + VBR (Playback)
Signal Processing & FX
Auto Gain, EQ, Limiter, Low-Cut Filter, Reverb
Timecode Support
No
Recording Time
WAV 44.1 kHz/16-Bit:
789 Hrs (Stereo)
WAV 48 kHz/16-Bit:
526 Hrs (Stereo)
WAV 96 kHz/16-Bit:
362 Hrs (Stereo)
WAV 44.1 kHz/24-Bit:
526 Hrs (Stereo)
WAV 48 kHz/24-Bit:
724 Hrs (Stereo)
WAV 96 kHz/24-Bit:
241 Hrs (Stereo)
WAV 44.1 kHz/32-Bit:
394 Hrs
WAV 48 kHz/32-Bit:
362 Hrs
WAV 96 kHz/32-Bit:
181 Hrs
Included Software
No
Connectivity
Analog I/O
1x 1/8" / 3.5 mm TRS Female Unbalanced Line/Mic Input
1x 1/8" / 3.5 mm TRS Female Unbalanced Headphone/Line Output
Digital I/O
No
Phantom Power
No
Plug-In Power
Yes
System Connection
1x USB-C (1.1, 2.0)
Audio Interface Capability
Stereo Only
Wireless
No
Mobile App Compatible
No
Performance
Frequency Response
20 Hz to 20 kHz +1/-3 dB (at 44.1 kHz, JEITA)
20 Hz to 22 kHz +1/-3 dB (at 48 kHz, JEITA)
20 Hz to 40 kHz +1/-3 dB (at 96 kHz, JEITA)
Max Input Level
Mic/Line Inputs:
-4 dBV
Max Output Level
Line Outputs:
+2 dBV
Headphone Output Power
20 mW per Channel into 32 Ohms
Impedance
Mic/Line Inputs:
≥18 Kilohms (Plug-In Power Off)
≥2 Kilohms (Plug-In Power On)
THD+N
≤0.01%
Microphone Max SPL
125 dB SPL
Power
Power Options
Battery, USB Bus Power, AC/DC Power Adapter
Battery Type
2x AA (Not Included)
Approximate Battery Life
WAV 44.1 kHz/16-Bit:
17.5 Hours (Alkaline, 2 Channels, Recording)
WAV 96 kHz/24-Bit:
15.5 Hours (Alkaline, 2 Channels, Recording)
AC/DC Power Adapter
5 VDC at 0.5 A (Not Included)
Input Power
5 VDC
Physical
Included Accessories
No
Mounting Options
1/4"-20 Female
Operating Conditions
32 to 104°F / 0 to 40°C
Dimensions
2.4 x 5.6 x 1.1" / 60.5 x 142.3 x 27 mm
Weight
4.4 oz / 126 g (without Batteries)
6.1 oz / 174 g (with Batteries)



What's in the Box:

  • TASCAM DR-07XP 2-Channel 32-Bit Float Portable Audio Recorder
  • Limited 1-Year Manufacturer Warranty
