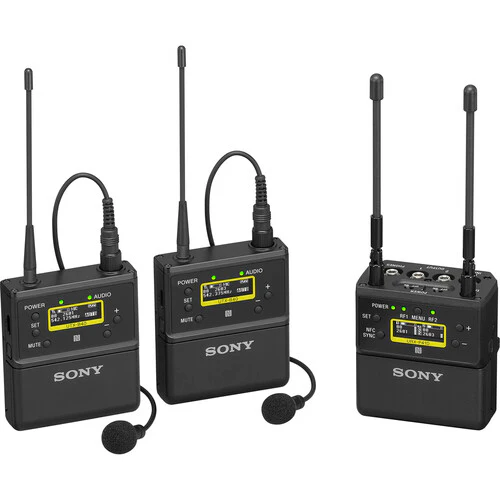

Sony UWP-D27 2-Person Camera-Mount Wireless Omni Lavalier Microphone System

Product image 1
1 / 3

Sony UWP-D27 2-Person Camera-Mount Wireless Omni Lavalier Microphone System

Made with simplicity in mind for DIY cameramen, videographers, vloggers, and journalists working in the field without a crew, the 4th-generation Sony UWP-D27 is a dependable 2-channel, camera-mount wireless lavalier microphone system that delivers uncompromising audio quality, while still being easy to use and fast to set up with no menu diving. This compact system is packed with professional features including one-button NFC Automatic Channel-Setting mode and Auto-Gain functions, which handle time-consuming frequency setup and mic-level adjustments for you—so you're ready to shoot two people talking simultaneously directly to your camera within seconds. It is ideal for documentaries, wedding videos, YouTube content, corporate spots, hands-free interviews, and more.

The UWP-D27 offers digital signal processing for pristine audio and analog UHF transmission with true-diversity reception for reliability, even under difficult shooting conditions. Rugged and lightweight, this system includes two bodypack transmitters, each with an ECM-V1BMP omnidirectional lavalier mic. It also comes with a low-profile camera-mount receiver designed for enhanced mobility with compact camcorders and smaller DSLR/mirrorless cameras. Sony shooters can take advantage of the SMAD-P5 digital MI Shoe adapter (available separately), which provides a direct, clean digital audio connection to select Sony cameras equipped with a digital Multi Interface Shoe. The UWP-D27 is backward-compatible with Sony WL-800, UWP Series, and third-generation UWP-D transmitters.


Key Specs

Wireless Technology
Analog UHF
Included Transmitters
2x Bodypack with Microphone
Diversity
True Diversity
Max Operating Range
330' / 100.6 m
Receiver Type
Camera-Mount
Microphone Type
Lavalier
Polar Pattern
Omnidirectional

System
Wireless Technology
Analog UHF
Number of RF Channel Frequencies
2772
Included Transmitters
2x Bodypack with Microphone
Diversity
True Diversity
RF Frequency Band
470.125 to 541.875 MHz
RF Bandwidth
72 MHz
Frequency Step Size
25 kHz
RF Channel Scanning
Auto-Scan
Max Operating Range
330' / 100.6 m
Max Transmitters per Band
16
Built-In Recorder
No
Timecode Support
No
Mobile App Compatible
No
Latency
0.24 to 0.35 ms
Encryption
No
Modulation
FM
SNR
96 dB
THD
<0.9 %

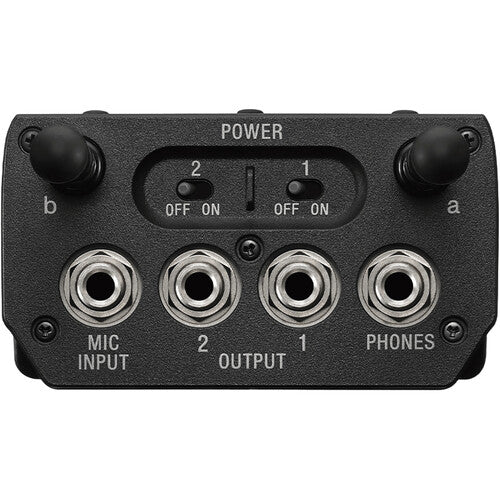

Receiver
Receiver Type
Camera-Mount

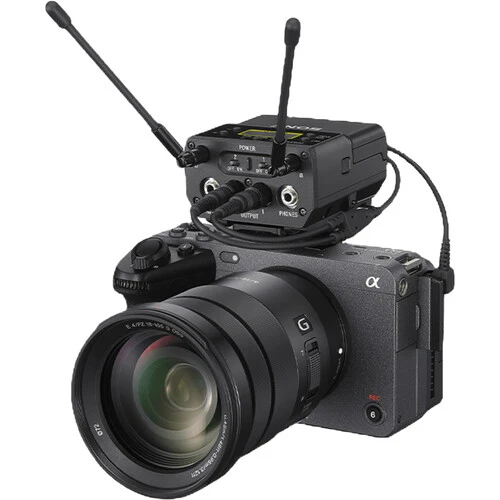

Mounting Options
Belt Clip, Shoe-Mount (with Included Hardware)
Antenna
2x Fixed 1/4 Wave External (Top-Mount)
Number of Audio Channels
2
Built-In Microphone
No
Audio I/O
2x 1/8" / 3.5 mm TRS Female Balanced Output (Locking)
1x 1/8" / 3.5 mm TRS Female Unbalanced Mic Input (Locking)
1x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Locking)
Gain Range
-12 to +12 dB (3 dB Steps)
Audio Output Level
-60 to -20 dBV
Frequency Response
23 Hz to 18 kHz
Network I/O
No
USB/Lightning Connectivity
1x USB-C Female (Bus Power)
USB Class-Compliant
No, USB Charging/Power Only
Power Requirements
Battery, Bus Power (USB)
Battery Type
2x AA (Not Included)
Approx. Battery Life
4.5 Hours (Alkaline)
DC Input Power
5 VDC (USB Bus Power)
Display & Indicators
OLED (AF Level, Battery Status, Channel, Frequency, Menu Navigation, Peak, RF Level)
Housing
Metal
Operating Temperature
32 to 122°F / 0 to 50°C
Storage Temperature
-4 to 131°F / -20 to 55°C
Dimensions
2.5 x 2.8 x 1.4" / 63 x 70 x 35 mm (without Antennas)
Weight
5.6 oz / 159 g (without Batteries)

Transmitter
Transmitter Type
Bodypack
RF Output Power
5 / 30 mW
Audio I/O
1x 1/8" / 3.5 mm TRS Male Unbalanced Input (Locking)
Muting
Mute Switch
Audio Input Level
+60 dBV (Mic Level)
+4 dBu (Line Level)
Auto-Level Control
Yes
Gain Range
0 to 21 dB (3 dB Steps)
Signal Processing
No
Frequency Response
23 Hz to 18 kHz
Sync Method
NFC
Antenna
1x Fixed 1/4 Wave Internal (Beltpack)
Power Requirements
Battery, Bus Power (USB)
Battery Type
2x AA (Not Included)
Approx. Battery Life
8 Hours (Alkaline)
USB/Lightning I/O
1x USB-C (Bus Power)
Display & Indicators
1x OLED (Audio Level, Battery Status, Peak, RF Output Power)
Housing
Metal
Operating Temperature
32 to 122°F / 0 to 50°C
Storage Temperature
-4 to 131°F / -20 to 55°C
Dimensions
2.5 x 3.2 x 0.8" / 63 x 82 x 20 mm (without Antennas)
Weight
5.3 oz / 149 g (without Batteries)

Microphone
Microphone Type
Lavalier
Sound Field
Mono
Capsule
Electret Condenser
Polar Pattern
Omnidirectional
Frequency Range
40 Hz to 20 kHz
Sensitivity
-43 dB at 1 kHz
Output Connector
1x 1/8" / 3.5 mm TRS Male Unbalanced (Locking)
Cable Length
3.9' / 1.2 m
Operating Temperature
32 to 122°F / 0 to 50°C
Storage Temperature
-4 to 131°F / -20 to 55°C
Length
0.8" / 19.5 mm
Diameter
0.3" / 6.8 mm
Weight
0.6 oz / 16.2 g

Packaging Info
Package Weight
2.115 lb
Box Dimensions (LxWxH)
12.1 x 11.2 x 2.9"

What's in the Box:

  • Sony UWP-D27 2-Person Camera-Mount Wireless Omni Lavalier Microphone System
  • Sony URX-P41D Dual-Channel Camera-Mount Wireless Receiver
  • 2 x Sony UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic
  • 2 x Sony ECM-V1BMP Omnidirectional Lavalier Microphone with Locking Sony 3.5mm Connector (Black)
  • 2 x Mic Clips
  • 2 x Windscreens
  • 3 x Belt Clips
  • Shoemount Adapter for Receiver
  • 2 x XLR to Locking 3.5mm Output Cables
  • 3.5mm to Locking 3.5mm Cable
  • Limited 1-Year Manufacturer Warranty
