Shure PSM 300 Twin-Pack Wireless In-Ear Monitor Kit

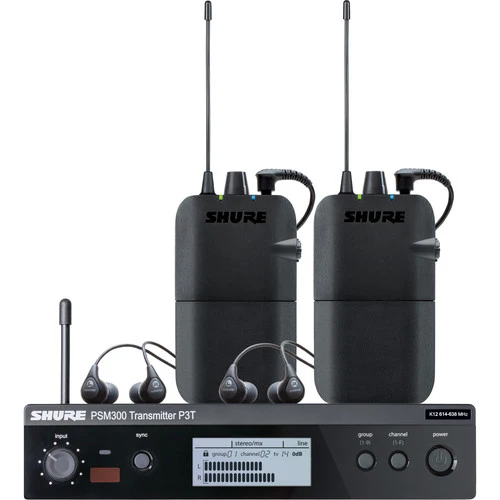

Product image 1
1 / 2

Shure PSM 300 Twin-Pack Wireless In-Ear Monitor Kit

Key Features

  • P3T Wireless Transmitter for PSM 300
  • 2 x P3R Wireless Bodypack Receivers
  • 2 x SE112 Sound Isolating Earphones
  • Includes Detachable 1/4 Wave Antenna
  • Rackmount and Hardware Kit
  • BNC Cable and Bulkhead Adapter
  • External Power Supply, 4 x AA Batteries
  • 2 x Zipper Bags
  • 6 x Pairs of Flex Sleeves
  • 2 x Drawstring Pouches



Overview

The Shure PSM 300 Twin-Pack Wireless In-Ear Monitor Kit includes a Shure P3T wireless transmitter, two P3R-H20 wireless bodypack receivers, and two Shure SE112 (gray) sound-isolating earphones. Other accessories include a 1/4 wave antenna, a BNC bulkhead adapter and cable, a power supply, four AA batteries, six pairs of flex sleeves (S, M, L), two drawstring pouches, and two zipper bags for the receivers. This kit can be used to deliver 24-bit digital audio, and it provides performers with a wireless monitoring option in applications for live concerts, theater, rehearsals, houses of worship, and more.


Key Specs

Shure P3T Wireless Transmitter for PSM300
Performance
Frequency Range
H20: 518-542 MHz
RF Output Power
10, 20, 30 mW
Note: varies by region
RF Output Impedance
50 Ohms (typical)
Transmission Range
300' (90 m)
Audio Input
Connector Type
1/4" TRS (6.35 mm)
Polarity
Tip positive with respect to ring
Configuration
Electronically balanced
Impedance
40 kOhms (actual)
Nominal Input Level
Switchable, +4 dBu, -10 dBV
Maximum Input Level
+4 dBu: +22 dBu
-10 dBV: +12.2 dBu
Pin Assignments
Tip=hot, Ring=cold, Sleeve=ground
Phantom Power Protection
Up to 60 VDC
Audio Output
Connector Types
1/4" TRS (6.35 mm)
Configuration
Electronically balanced
Impedance
Connected directly to inputs
General
Antenna
1/4 wave, detachable
Power Requirement
12 to 15 VDC, 260 mA maximum
Dimensions
1.7 x 7.8 x 6.8" (43 x 198 x 172 mm)
Net Weight
27.6 oz (783 g)
Shure P3R-H20 Wireless Bodypack Receiver for PSM300
RF Sensitivity
Active: 2.2 μV (at 20 dB SINAD)
Image Rejection
>90 dB
Adjacent Channel Rejection
>60 dB
Intermodulation Attenuation
>50 dB
Blocking
>60 dB
Audio Output Power
1 kHz @ <1% distortion, Peak Power, @32 ohms: 80 mW (per output)
Minimum Load Impedance
16 ohms
Headphone Output
1/8" (3.5 mm) stereo
Battery Life
5-7 hours (continuous use) AA batteries
Dimensions
4.3 x 2.5 x 0.8" (110 × 64 × 21 mm)
Weight
3.5 oz (98 g) without batteries
Shure SE112 Sound Isolating Earphones (Gray)
Wearing Style
Dual Wired Earbud
Number of Drivers
1 per Earpiece
Impedance
16 Ohms
Active Noise Cancellation
No
Built-In Mic
No
Audio Connector
1x 1/8" / 3.5 mm TRS Right-Angled
Included Adapter
No


What's in the Box:
  • Shure P3T Wireless Transmitter for PSM300
    • Detachable 1/4 Wave Antenna
    • Rackmount and Hardware Kit
    • BNC Cable
    • BNC Bulkhead Adapter
    • External Power Supply
  • 2 x Shure P3R-H20 Wireless Bodypack Receiver for PSM300
    • 2 x AA Batteries
    • Zipper Bag
  • 2 x Shure SE112 Sound Isolating Earphones (Gray)
    • Pair of Small Soft Flex Sleeves
    • Pair of Medium Soft Flex Sleeves
    • Pair of Large Soft Flex Sleeves
    • Drawstring Pouch
  • Limited 1-Year Manufacturer Warranty
Key Features

  • P3T Wireless Transmitter for PSM 300
  • 2 x P3R Wireless Bodypack Receivers
  • 2 x SE112 Sound Isolating Earphones
  • Includes Detachable 1/4 Wave Antenna
  • Rackmount and Hardware Kit
  • BNC Cable and Bulkhead Adapter
  • External Power Supply, 4 x AA Batteries
  • 2 x Zipper Bags
  • 6 x Pairs of Flex Sleeves
  • 2 x Drawstring Pouches



Overview

The Shure PSM 300 Twin-Pack Wireless In-Ear Monitor Kit includes a Shure P3T wireless transmitter, two P3R-H20 wireless bodypack receivers, and two Shure SE112 (gray) sound-isolating earphones. Other accessories include a 1/4 wave antenna, a BNC bulkhead adapter and cable, a power supply, four AA batteries, six pairs of flex sleeves (S, M, L), two drawstring pouches, and two zipper bags for the receivers. This kit can be used to deliver 24-bit digital audio, and it provides performers with a wireless monitoring option in applications for live concerts, theater, rehearsals, houses of worship, and more.


Key Specs

Shure P3T Wireless Transmitter for PSM300
Performance
Frequency Range
H20: 518-542 MHz
RF Output Power
10, 20, 30 mW
Note: varies by region
RF Output Impedance
50 Ohms (typical)
Transmission Range
300' (90 m)
Audio Input
Connector Type
1/4" TRS (6.35 mm)
Polarity
Tip positive with respect to ring
Configuration
Electronically balanced
Impedance
40 kOhms (actual)
Nominal Input Level
Switchable, +4 dBu, -10 dBV
Maximum Input Level
+4 dBu: +22 dBu
-10 dBV: +12.2 dBu
Pin Assignments
Tip=hot, Ring=cold, Sleeve=ground
Phantom Power Protection
Up to 60 VDC
Audio Output
Connector Types
1/4" TRS (6.35 mm)
Configuration
Electronically balanced
Impedance
Connected directly to inputs
General
Antenna
1/4 wave, detachable
Power Requirement
12 to 15 VDC, 260 mA maximum
Dimensions
1.7 x 7.8 x 6.8" (43 x 198 x 172 mm)
Net Weight
27.6 oz (783 g)
Shure P3R-H20 Wireless Bodypack Receiver for PSM300
RF Sensitivity
Active: 2.2 μV (at 20 dB SINAD)
Image Rejection
>90 dB
Adjacent Channel Rejection
>60 dB
Intermodulation Attenuation
>50 dB
Blocking
>60 dB
Audio Output Power
1 kHz @ <1% distortion, Peak Power, @32 ohms: 80 mW (per output)
Minimum Load Impedance
16 ohms
Headphone Output
1/8" (3.5 mm) stereo
Battery Life
5-7 hours (continuous use) AA batteries
Dimensions
4.3 x 2.5 x 0.8" (110 × 64 × 21 mm)
Weight
3.5 oz (98 g) without batteries
Shure SE112 Sound Isolating Earphones (Gray)
Wearing Style
Dual Wired Earbud
Number of Drivers
1 per Earpiece
Impedance
16 Ohms
Active Noise Cancellation
No
Built-In Mic
No
Audio Connector
1x 1/8" / 3.5 mm TRS Right-Angled
Included Adapter
No


What's in the Box:
  • Shure P3T Wireless Transmitter for PSM300
    • Detachable 1/4 Wave Antenna
    • Rackmount and Hardware Kit
    • BNC Cable
    • BNC Bulkhead Adapter
    • External Power Supply
  • 2 x Shure P3R-H20 Wireless Bodypack Receiver for PSM300
    • 2 x AA Batteries
    • Zipper Bag
  • 2 x Shure SE112 Sound Isolating Earphones (Gray)
    • Pair of Small Soft Flex Sleeves
    • Pair of Medium Soft Flex Sleeves
    • Pair of Large Soft Flex Sleeves
    • Drawstring Pouch
  • Limited 1-Year Manufacturer Warranty
$1,143.36
