• Load Capacity: 8.8 lb
• 3 Independent Movements with Locks
• Spring-Clamp Controls for Fast Movements
• Integrated Incremental, Geared Movements
• 90° Forwards and 20° Backwards Tilt
• Up to 90° Portrait Angle Tilt
• 360° Rotation, Three Bubble Levels
• RC2 Quick Release Cam Lock
• 200PL-14 Quick Release Plate
• 1/4"-20 Mount, Non-Slip Surface



Overview

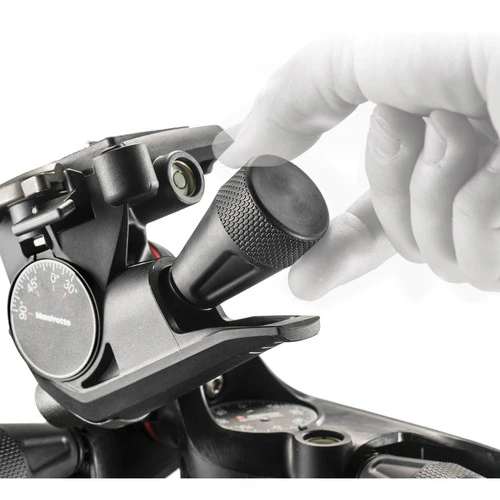

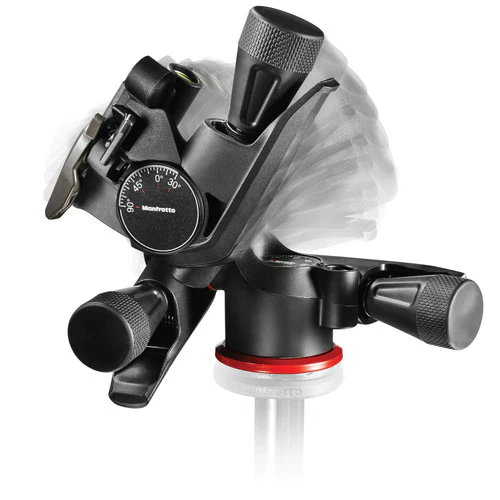

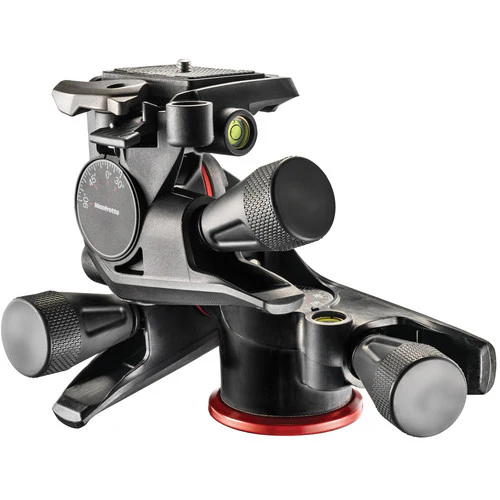

This Manfrotto XPRO 3-Way, Geared Pan-and-Tilt Head has a load capacity of 8.8 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC2 quick release cam lock and a 200PL-14 Quick Release Plate. RC2 compatible quick release plates such as the 200PL-14 can be removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be quickly reattached. The cam lock also features a safety catch to prevent the 200PL-14, or another compatible quick release plate from accidentally disconnecting.



Key Specs

Camera Mounting	1/4"-20 Screw (Quick Release Plate: 200PL-14)
Head Type	Pan & Tilt Head
Load Capacity	8.8 lb / 3.99 kg
Weight	1.65 lb / 750 g



What's in the Box:

• Manfrotto XPRO 3-Way, Geared Pan-and-Tilt Head with 200PL-14 Quick Release Plate
• 200PL-14 Quick Release Plate
• Limited 1-Year Manufacturer Warranty
