Key Features

• Supports 17.6 Pounds
• Wide Platform for Camcorders & HDSLRs
• 60mm Half Ball for Leveling
• Spring-Loaded Counterbalance



Overview

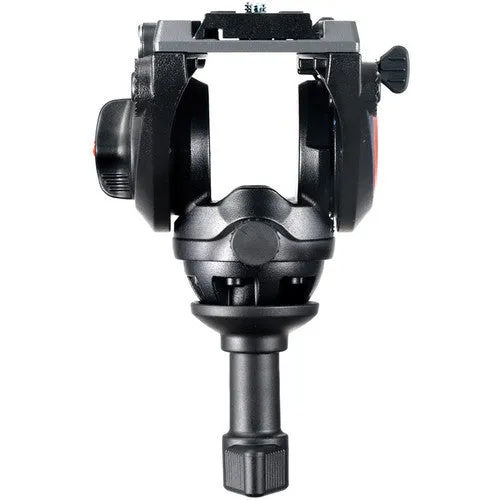

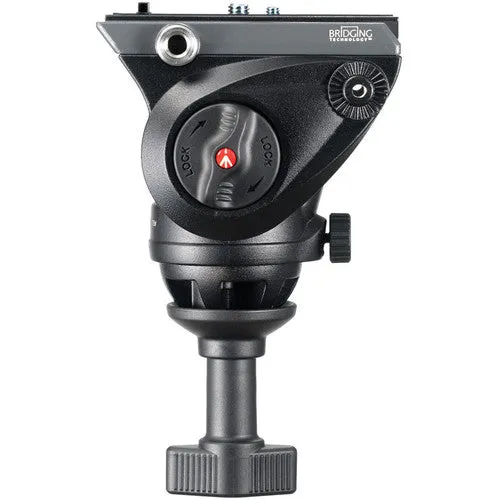

The Manfrotto MVH500A Fluid Drag Video Head with MVT502AM Tripod and Carry Bag features a fluid head with a wide platform to support the HDSLR form factor, and a 60mm half ball for quick leveling without adjusting the legs. The head supports a maximum weight load of 17.6 pounds and has a built-in, pre-set spring-loaded counterbalance of 5.3 pounds. It features a tilt range of -70°/+90° and provides a panning rotation of 360°. The head also features a side lock system for the sliding quick release plate, a pan handle, and an integrated bubble level.

Key Specs

Camera Mounting Screw	1x 1/4"-20 Male 1x 3/8"-16 Male
Camera Plate	Sideload Quick Release w/ Sliding Balance Plate: 500PLONG
Head Type	Fluid Head
Drag Control	No
Primary Material	Aluminum
Load Capacity	17.6 lb / 8 kg
Maximum Working Height	60.63" / 154.00 cm
Minimum Working Height	26.6" / 67.5 cm
Closed Length	28.35" / 72.01 cm
Weight	7.85 lb / 3.56 kg



What's in the Box:

• Manfrotto MVH500A Fluid Drag Video Head with MVT502AM Tripod and Carry Bag
• Manfrotto 500PLONG Video Camera Plate
• 1/4"-20 Camera Tie-Down Screw
• 3/8"-16 Camera Tie-Down Screw
• Manfrotto 500HLV Pan Bar Handle for Select Video Heads
• 75 to 60mm Head Fitting Adapter
• Elastic Leg Safety
• Limited 1-Year Manufacturer Warranty
