Key Features

• Flat Base Fluid Head w/ 17.6 lb Payload
• Wide Platform Ideal for DSLRs
• -70° / +90° Tilt & 360° Pan
• Accepts Camera Plates from Above



Overview

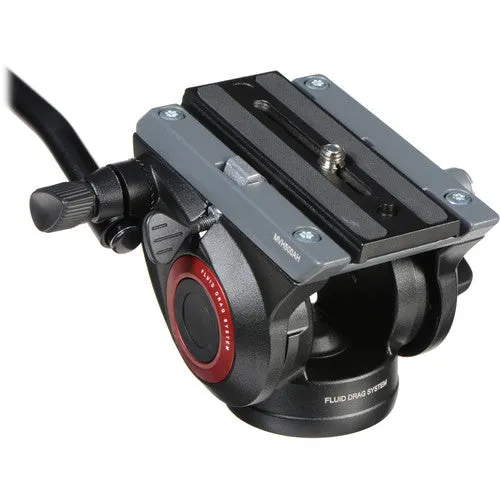

The Manfrotto 500 Fluid Video Head with 190X Video Aluminum Tripod & Leveling Column Kit includes a flat base fluid video head and a flat base 2-stage tripod with ball-leveling center column. The head features a wider-than-standard platform to provide better support for DSLRs, and it supports a maximum load capacity of 17.6 lb. A 500PLONG quick release plate is included, and the head's side lock mounting system enables the plate to click in from above, instead of aligning and sliding in from one end.

Key Specs

Camera Mounting Screw	1x 1/4"-20 Male 1x 3/8"-16 Male
Camera Plate	Quick Release w/ Sliding Balance Plate: 500PLONG
Head Type	Fluid Head
Drag Control	No
Primary Material	Aluminum
Load Capacity	17.6 lb / 8 kg
Maximum Working Height	68.23" / 173.3 cm
Minimum Working Height	9.8" / 24.9 cm
Closed Length	28.4" / 72.2 cm
Weight	7.05 lb / 3.2 kg
