Mackie CR5-X Creative Reference Series 5" Multimedia Monitors (Pair)

Product image 1
1 / 3

Mackie CR5-X Creative Reference Series 5" Multimedia Monitors (Pair)

Key Features
  • 5" Polypropylene-Coated Woofer
  • 0.75" Silk-Dome Tweeter
  • 80W Amplifier
  • All-Wood Cabinet
  • Custom-Tuned Rear Port
  • Specially Designed Waveguide
  • 1/4" TRS, 3.5mm TRS, and RCA Inputs
  • Front-Panel Stereo Headphone Output
  • Includes Cables & Monitor Isolation Pads



Overview

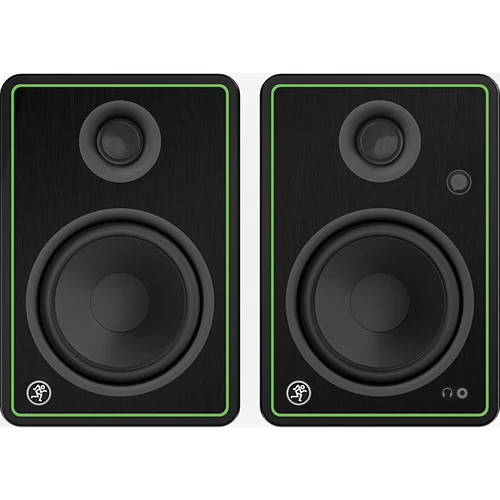

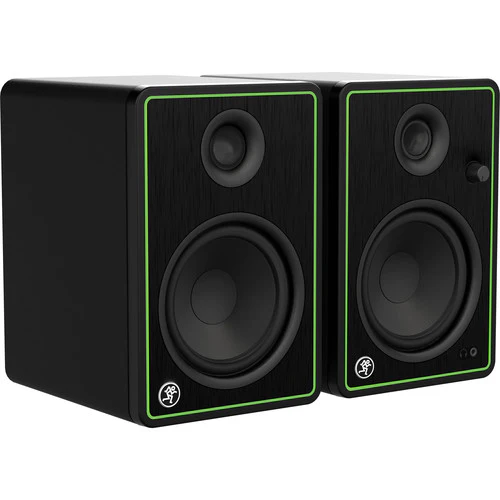

The Mackie CR5-X is a pair of Creative Reference Series 5" multimedia monitors offering a compact solution for quality audio playback in home studios and gaming setups. With 80W of amplification driving 5" woofers and 0.75" tweeters, the CR5-X monitors deliver more volume and bass than the smaller CR3-X and CR4-X.

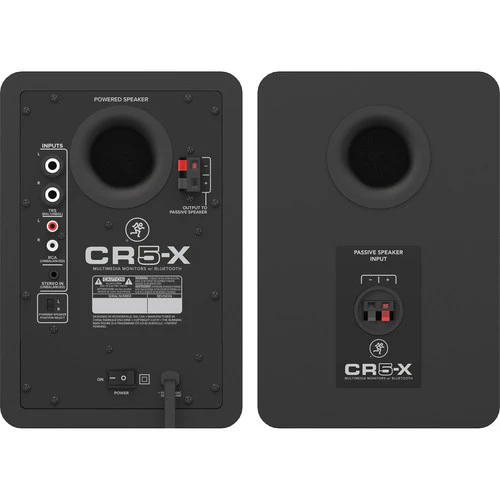

The pair consists of one passive speaker and one powered speaker that connect with an included speaker cable. Each monitor incorporates a custom-tuned rear port to smoothly extend the low end and a specially designed waveguide for clarity and proper dispersion of high frequencies.

With plenty of I/O provided, the CR5-X can accept a feed from your audio interface, computer soundcard, or mobile device while pumping out your mix to the drivers or your favorite headphones.



Key Specs

Monitor Type & Configuration
Active 2-Way
Total Power Output
40 W Peak per Monitor
Tweeter
1x 0.75" / 19.1 mm Silk Dome
Woofer
1x 5" / 12.7 cm Polypropylene Cone
Frequency Range
50 Hz to 20 kHz (-10 dB)
69 Hz to 20 kHz (-3 dB)
Audio I/O
2x 1/4" TRS Balanced/Unbalanced Line Input
1x Stereo 2RCA Unbalanced Line Input
1x 1/8" / 3.5 mm TRS Unbalanced Aux Input
2x Push Terminal Unbalanced Passive Speaker Output
1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
Digital Audio I/O
No
Network I/O
No
Wireless
No
Number of Included Monitors
Stereo Pair
Enclosure
Bass-Reflex/Ported
Total Power Output
40 W Peak per Monitor

Drivers per Monitor
Tweeter
1x 0.75" / 19.1 mm Silk Dome
Woofer
1x 5" / 12.7 cm Polypropylene Cone
Amplifiers
Full-Range: 80 W Peak Class-D

Performance
Frequency Range
50 Hz to 20 kHz (-10 dB)
69 Hz to 20 kHz (-3 dB)
Maximum Sound Pressure Level (SPL)
105 dB

Signal Processing
EQ
No
Filters
No
Parametric EQ
No
Crossover Frequency
3 kHz
Phase Adjustment
No

Connectivity
Audio I/O
2x 1/4" TRS Balanced/Unbalanced Line Input
1x Stereo 2RCA Unbalanced Line Input
1x 1/8" / 3.5 mm TRS Unbalanced Aux Input
2x Push Terminal Unbalanced Passive Speaker Output
1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
Digital Audio I/O
No
Network I/O
No
USB
No
Wireless
No

Power
AC Input Power
100 to 240 VAC, 50/60 Hz
Power Consumption
80 W

Physical
Color
Black
Monitor Orientation
Vertical
Enclosure Material
MDF
Mounting Points
No
Operating Conditions
32 to 104°F / 0 to 40°C
Dimensions (W x H x D)
6.9 x 10.2 x 9.3" / 17.5 x 25.9 x 23.6 cm (Each)
Weight
14.9 lb / 6.8 kg (Pair)

Packaging Info
Package Weight
17.29 lb
Box Dimensions (LxWxH)
18.6 x 13 x 11.2"



What's in the Box:

  • Mackie CR5-X Creative Reference Series 5" Multimedia Monitors (Pair)
  • 2 x Monitor Isolation Pads
  • 3.5mm to Stereo RCA Cable
  • 3.5mm to 3.5mm Cable for Connecting Smartphone to Monitor
  • Speaker to Speaker Cable
  • Limited 1-Year Manufacturer Warranty
