- Two 3/4" Tweeters (One per Monitor)
- Two 3" Woofers (One per Monitor)
- Bluetooth Capability
- Two RCA Inputs
- One 3.5mm Input
- Onboard DSP
- Built-In EQ
Overview

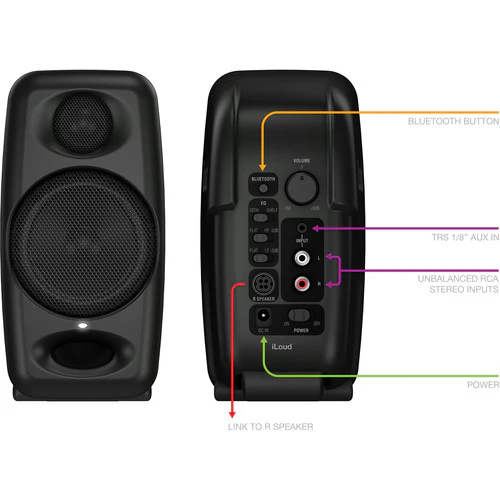

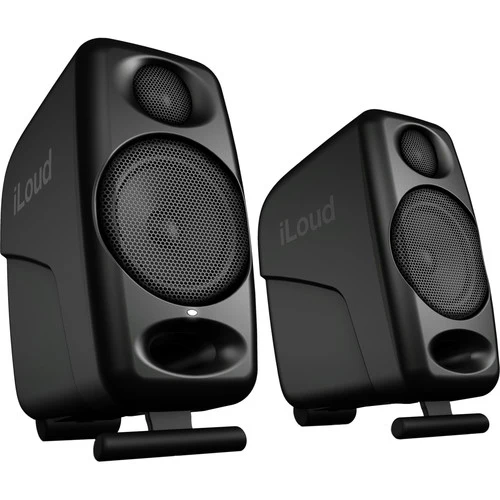

Styled in a black finish, the iLoud Micro Monitors by IK Multimedia comprise a pair of Bluetooth-powered studio-quality speakers in an exceedingly compact frame. Although they are designed to accommodate most iOS and Android devices through Bluetooth, they can also be sounded via a built-in 3.5mm auxiliary input or a pair of unbalanced RCA inputs.
The monitors themselves are comprised of two 3/4" tweeters and two 3" woofers (one tweeter and one woofer per monitor) and are augmented by an onboard 56-bit DSP processor designed to ensure a linear frequency response. On the rear panel of the left monitor, you'll find a three-band EQ section. This allows you to tune both speakers to any given listening environment. Due to the size, portability, and tuning options of these speakers, they will suit many different listening environments.
Key Specs
| Monitor Type & Configuration |
Active 2-Way
|
| Total Power Output |
35 W Peak / 25 W RMS per Monitor
|
| Tweeter |
1x 0.75" / 19.1 mm Silk Dome
|
| Woofer |
1x 3" / 7.62 cm Composite Cone
|
| Frequency Range |
55 Hz to 20 kHz (-3 dB)
45 Hz to 22 kHz (-10 dB)
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Unbalanced Input
1x Stereo 2RCA Unbalanced Input
|
| Digital Audio I/O |
No
|
| Network I/O |
No
|
| Wireless |
No
|
| Number of Included Monitors |
Stereo Pair
|
| Enclosure |
Bass-Reflex/Ported
|
| Total Power Output |
35 W Peak / 25 W RMS per Monitor
|
Drivers per Monitor
| Tweeter |
1x 0.75" / 19.1 mm Silk Dome
|
| Woofer |
1x 3" / 7.62 cm Composite Cone
|
| Amplifiers |
HF: 2 x 7 W RMS Class-D
Low-Mid: 2 x 18 W RMS Class-D
|
Performance
| Frequency Range |
55 Hz to 20 kHz (-3 dB)
45 Hz to 22 kHz (-10 dB)
|
| Maximum Sound Pressure Level (SPL) |
107 dB
|
Signal Processing
| EQ |
1x HF Shelf: 0 to +2 dB at 4 kHz
1x LF Shelf: -3 dB at 250 Hz
|
Connectivity
| Audio I/O |
1x 1/8" / 3.5 mm TRS Unbalanced Input
1x Stereo 2RCA Unbalanced Input
|
| Digital Audio I/O |
No
|
| Network I/O |
No
|
| USB |
No
|
| Wireless |
No
|
Power
| AC Input Power |
Not Specified by Manufacturer
|
Physical
| Color |
Black
|
| Monitor Orientation |
Vertical
|
| Dimensions (W x H x D) |
7.1 x 5.3 x 3.5" / 18 x 13.5 x 8.9 cm (Each)
|
| Weight |
2.0 lb / 0.9 kg (with Amplifier)
1.8 lb / 0.8 kg (without Amplifier)
|
Packaging Info
| Package Weight |
6.2 lb
|
| Box Dimensions (LxWxH) |
13.2 x 9.5 x 7"
|
What's in the Box:
- IK Multimedia iLoud Micro Monitors (Pair, Black)
- 4-Pin Speaker Connector Cable
- Power Supply
- Power Supply Cable
-
3.5mm to RCA (x2) Cable
