Key Features

• 7" 1920 x 1200 IPS LCD Monitor
• HDMI and SDI Input/Output
• 2200 cd/m² Brightness, Touchscreen
• Inputs SD, HD, and DCI 4K Video



Overview

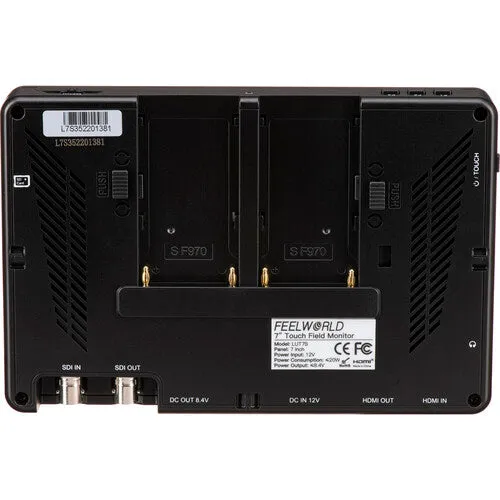

Featuring a 323 PPI (pixels-per-inch) IPS LCD panel, the LUT7S 7" 4K HDMI and SDI Monitor from Feelworld displays SD, HD, UHD, and DCI 4K video. The LCD panel boasts a 1920 x 1200 resolution, 16:10 aspect ratio, 1200:1 contrast ratio, and a 2200 cd/m² measured brightness for easy viewing outdoors as well as indoors. The touchscreen allows you to quickly access your settings, and the IPS LCD provides good off-axis viewing, allowing you to see the image without being directly in front of the monitor and not experiencing distorted colors or contrast. The monitor's chassis is both thin and light at about an inch thick and weighing only 1 lb.

Key Specs

Display Size	7.0" / 17.8 cm
Native Resolution	1920 x 1200
Touchscreen	Yes
HDR Support	No
Video I/O	1x HDMI 1.4 Input 1x HDMI 1.4 Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output
Media/Memory Card Slot	No
Video Format	HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p: 25 480p: 29.97 576i: 50 480i: 59.94 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 576i: 50 480i: 59.94
Battery Type	2x L-Series (Interchangeable Mount)
Power Consumption	20 W
Mounting	1x 1/4"-20 Female
