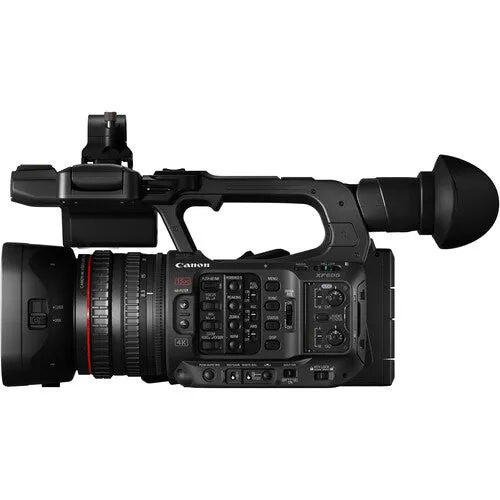

Combining high-resolution capture with a mobile workflow, the 15x zoom XF605 UHD 4K HDR Pro Camcorder from Canon is a go-to choice for ENG, sports, entertainment, and narrative applications. This compact 1" CMOS sensor camera with a DIGIC DV 7 engine features high sensitivity, Canon cinema color matrix choices, Canon Log 3, HDR support, and Eye AF and EOS iTR AF X (head detection) autofocus modes. It offers up to UHD 4K60 4:2:2 10-bit capture in a variety of both All-I and Long-GOP XF-AVC and MP4 H.264/H.265 formats with the ability to capture different codecs and rates simultaneously to its dual SD card slots. A Direct Touch Control touchscreen menu, four-channel XLR audio, simultaneous outputs, a USB-C video output, and an iPhone app built on established XF series features such as individual focus, iris, and zoom rings, and built-in ND filters.

Key Specs

Sensor Resolution	Actual: 13.4 Megapixel (4268 x 3148) Effective: 8.29 Megapixel (3840 x 2160)
Image Sensor	1"-Type CMOS
Image Stabilization	Optical in Integrated Lens Digital
Internal Recording Modes	MXF/XF-AVC 4:2:2 10-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94 fps [160 to 410 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94/120 fps [50 to 310 Mb/s] 1920 x 1080i at 50/59.94 fps [50 to 160 Mb/s] 1280 x 720 at 23.98/25/29.97/50/59.94 fps H.265/MP4 4:2:2 10-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94 fps [135 to 225 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94/120 fps [50 Mb/s] 1280 x 720 at 23.98/25/29.97/50/59.94 fps [12 Mb/s] H.265/MP4 4:2:0 10-Bit 3840 x 2160 at 23.98/25/29.97/50/59.94 fps [100 to 170 Mb/s] 1920 x 1080p at 23.98/25/29.97/50/59.94 fps [35 Mb/s] 1280 x 720 at 23.98/25/29.97/50/59.94 fps [9 Mb/s] H.264/MP4 4:2:0 8-Bit 3840 x 2160 from 1 to 23.98/25/29.97/50/59.94 fps [150 Mb/s] 1920 x 1080p from 1 to 23.98/25/29.97/50/59.94 fps [35 Mb/s] 1280 x 720 at 23.98/25/29.97/50/59.94 fps
External Recording Modes	SDI/BNC UHD 4K (3840 x 2160) up to 59.94 fps
Media/Memory Card Slot	Slot 1: SD/SDHC/SDXC Slot 2: SD/SDHC/SDXC
Video I/O	1x HDMI 2.0 Output 1x BNC (12G-SDI) Output
Battery Type	Canon BP-A Series



What's in the Box:

• Canon XF605 UHD 4K HDR Pro Camcorder
• Canon BP-A30 Battery Pack for EOS C300 Mark II, C200, and C200B
• Canon CA-CP200L Compact AC Power Adapter
• Canon Single Battery Charger for EOS C300 Mark II, C200, and C200B Batteries
• Lens Cap
• Lens Hood
• Limited 1-Year Manufacturer Warranty
