Key Features

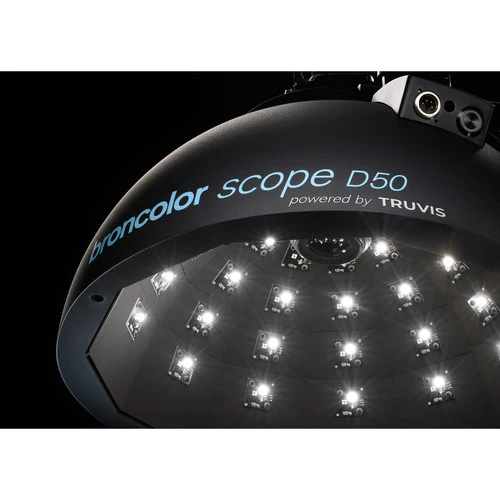

• 48 High-Quality LEDs
• Portable Integrated Solution
• Sophisticated Capture Software
• Built-In WiFi and Bluetooth
• Desktop or Ground Installation
• Compatible with All Common Camera Types




Overview

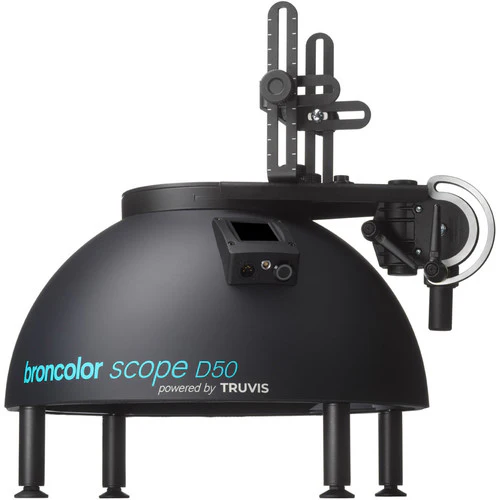

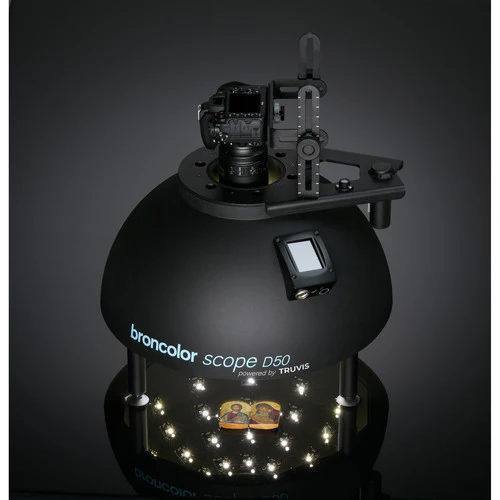

The Broncolor Scope D50, is a unique, portable, surface-visualization system which reproduces absolute authenticity in the shape, color, and texture of an object by means of a digital image. The results can be viewed in any web environment or on any mobile device. This allows for on-the-spot digital recording of objects and artifacts that can then be examined thoroughly at a later time.

Developed by Broncolor and powered by Truvis, a scientific startup company originating from the Digital Humanities Lab at the University of Basel Switzerland, the Scope D50 is the most advanced system of digitally experiencing surfaces. It takes multiple images which are then translated into a mathematical surface model. This technology adds a whole new dimension to analyzing a subject as opposed to studying flat photographs. Details that previously would have been lost can now contribute to a greater understanding of artifacts. Conveniently battery powered, the scope D50 creates a new level of detail in research, creating more accurate reconstructions when studying objects.

Key Specs

Materials	Steel Aluminum ABS Plastic
Supply Voltage	85-260 VAC 47-63 Hz
Power Input	<100 W
Ambient Temperature	32-122 °F / 0-50 °C
Ambient Humidity	0-85% Non-Condensing
Storage Temperature	14-158 °F / 10-70 °C
Light	48 White LEDs 48 UV LEDs 48 IR LEDs
Color Temperature	5000K ±75K
CRI	>90
Lumens	1500
Wavelength Range	UV: 390-395 nm IR: 920-960 nm
Dimensions	18.9 x 19.7 x 23.2" / 48 x 50 x 59 cm
Weight	21.96 lb / 9.96 kg



What's in the Box:

• Broncolor Scope D50 Portable Surface Visualization System (UV/IR )
• Limited 2-Year Manufacturer Warranty
