Apogee Electronics Symphony Desktop 10x14 USB Audio Interface

Product image 1
1 / 6
+1

Apogee Electronics Symphony Desktop 10x14 USB Audio Interface

Key Features
  • Symphony Sound Quality in Desktop Format
  • Preamp Emulation, Hardware DSP, Plug-Ins
  • Easy Operation with Color Touchscreen
  • Two Stepped-Gain Preamps with 75 dB Gain
  • XLR-1/4" Mic/Line Inputs & 1/4" Hi-Z In
  • Two 1/4" Monitor Outputs
  • 1/4" and 3.5mm Assignable Headphone Outs
  • Optical I/O for ADAT or S/PDIF
  • USB Type-C and USB Type-A Connectivity
  • Mac, Windows, and iPad Pro Compatible



Overview

Merging the sound quality of the rackmount Symphony I/O Mk II with the simplicity of the Duet and Quartet, the Apogee Electronics Symphony Desktop offers musicians and producers premium Apogee fidelity, flexible I/O, and powerful plug-in processing in a travel-friendly form factor.

With emulations of vintage British and American mic preamps, DSP/native Apogee FX plug-ins, and multiple zero-latency plug-in workflows, the Symphony Desktop puts you in complete control of your tone. Thanks to its color touchscreen and large control knob, the Symphony Desktop provides easy operation and comprehensive visual feedback.

Record mic-, line-, or instrument-level signals through the variable-impedance, high-gain preamps and use the monitor outputs and assignable headphone jacks for listening to the main mix or an alternate source. Expand your setup by connecting external digital equipment to the optical TOSLINK ports, which support 8-channel ADAT or 2-channel S/PDIF protocols.



Key Specs

Channels of I/O
Analog:
2 Input / 6 Output at 192 kHz
Digital:
8 Input / 8 Output at 48 kHz
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2

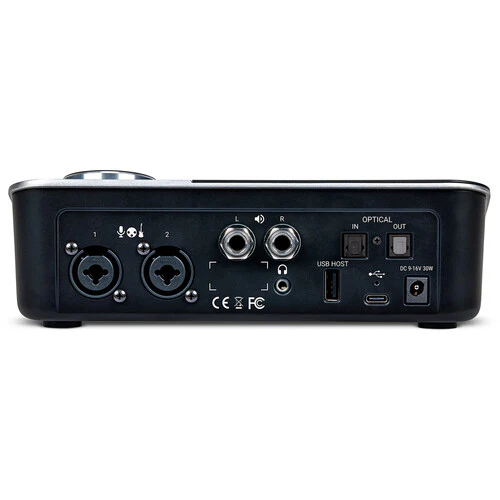

Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced Mic/Line Input
1x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
2x 1/4" TRS Balanced Monitor Output
1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
Digital Audio I/O
1x TOSLINK Optical ADAT / S/PDIF Input
1x TOSLINK Optical ADAT / S/PDIF Output
Host Connection
1x USB-C
Power Requirements
AC/DC Power Adapter (Included)
Channels of I/O
Analog:
2 Input / 6 Output at 192 kHz
Digital:
8 Input / 8 Output at 48 kHz
Built-In DSP
Yes
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Built-In Microphone
No
Input Level Adjustment
1x Knob

Signal Processing
Pad
No
Gain/Trim Range
Mic Inputs:
Up to +75 dB
High-Pass Filter
No
Solo/Mute
No

Connectivity
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced Mic/Line Input
1x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
2x 1/4" TRS Balanced Monitor Output
1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
Phantom Power
48 V, Selectable On/Off (Selectable on Individual Inputs)
Digital Audio I/O
1x TOSLINK Optical ADAT / S/PDIF Input
1x TOSLINK Optical ADAT / S/PDIF Output
Host Connection
1x USB-C
Host Connection Protocol
USB 2.0
USB (Non-Host)
1x USB-A (Update)
Sync I/O
No
Network I/O
No
MIDI I/O
No
Expansion Slots
No
Wireless
No

Performance
Frequency Response
A/D Converters:
10 Hz to 20 kHz ±0.2 dB (at 44.1 kHz)
D/A Converters:
10 Hz to 20 kHz ±0.05 dB (at 44.1 kHz)
Maximum Input Level
A/D Converters:
+20 dBu (+4 dBu)
+6 dBV (-10 dBV)
Mic Inputs:
+20 dBu
Hi-Z Inputs:
+14 dBu
Maximum Output Level
D/A Converters:
+20 dBu (+4 dBu)
+6 dBV (-10 dBV)
Headphone Output Power
520 mW into 30 Ohms (Max)
90 mW into 600 Ohms (Max)
Impedance
A/D Converters:
4 Kilohms
D/A Converters:
50 Ohms
Mic Inputs:
150 to 4000 Ohms
Hi-Z Inputs:
220 Kilohms
470 Kilohms
20 Megohms
Headphone Outputs:
0.5 Ohms
Dynamic Range
Headphone Outputs:
128 dB (A-Weighted)
A/D Converters:
123 dB (A-Weighted)
D/A Converters:
129 dB (A-Weighted)
THD+N
A/D Converters:
-113 dB
D/A Converters:
-114 dB
Headphone Outputs:
-111 dB (600-Ohm Load)
EIN
Mic Inputs:
129 dB (150-Ohm Source, +60 dB Gain)

Digital Audio
Sample Rates
Up to 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Sync Sources
ADAT, Internal, S/PDIF

Audio Storage & Playback
Media/Memory Card Slot
No

Compatibility
OS Compatibility
Computer: macOS 10.14 or Later / Windows 10 or Later
Mobile: iPadOS Only
Processor Requirement
Intel Core i7
RAM Requirements
4 GB, 8 GB Recommended
Mobile Device Compatibility
iPad Pro (with USB-C)
iPhone
Required Hardware
Available USB-A Port
USB Cable (Included)

Power
Power Requirements
AC/DC Power Adapter (Included)
AC/DC Power Adapter
9 to 16 VDC (Included)
Power Consumption
30 W

Physical
Certifications
CE, FCC
Dimensions
8 x 4.75 x 2.5" / 20.3 x 12.06 x 6.3 cm
Weight
1.8 lb / 0.8 kg

Packaging Info
Package Weight
4.475 lb
Box Dimensions (LxWxH)
11.5 x 10.2 x 4.6"

What's in the Box:

  • Apogee Electronics Symphony Desktop 10x14 USB Audio Interface
  • 12 VDC Power Supply with US, UK, EU, and SAA Power Adapters
  • USB Type-C to USB Type-C Cable
  • USB Type-C to USB Type-A Cable
  • USB Thumb Drive for Touchscreen Control Updates
  • Limited 1-Year Manufacturer Warranty
Key Features
  • Symphony Sound Quality in Desktop Format
  • Preamp Emulation, Hardware DSP, Plug-Ins
  • Easy Operation with Color Touchscreen
  • Two Stepped-Gain Preamps with 75 dB Gain
  • XLR-1/4" Mic/Line Inputs & 1/4" Hi-Z In
  • Two 1/4" Monitor Outputs
  • 1/4" and 3.5mm Assignable Headphone Outs
  • Optical I/O for ADAT or S/PDIF
  • USB Type-C and USB Type-A Connectivity
  • Mac, Windows, and iPad Pro Compatible



Overview

Merging the sound quality of the rackmount Symphony I/O Mk II with the simplicity of the Duet and Quartet, the Apogee Electronics Symphony Desktop offers musicians and producers premium Apogee fidelity, flexible I/O, and powerful plug-in processing in a travel-friendly form factor.

With emulations of vintage British and American mic preamps, DSP/native Apogee FX plug-ins, and multiple zero-latency plug-in workflows, the Symphony Desktop puts you in complete control of your tone. Thanks to its color touchscreen and large control knob, the Symphony Desktop provides easy operation and comprehensive visual feedback.

Record mic-, line-, or instrument-level signals through the variable-impedance, high-gain preamps and use the monitor outputs and assignable headphone jacks for listening to the main mix or an alternate source. Expand your setup by connecting external digital equipment to the optical TOSLINK ports, which support 8-channel ADAT or 2-channel S/PDIF protocols.



Key Specs

Channels of I/O
Analog:
2 Input / 6 Output at 192 kHz
Digital:
8 Input / 8 Output at 48 kHz
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced Mic/Line Input
1x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
2x 1/4" TRS Balanced Monitor Output
1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
Digital Audio I/O
1x TOSLINK Optical ADAT / S/PDIF Input
1x TOSLINK Optical ADAT / S/PDIF Output
Host Connection
1x USB-C
Power Requirements
AC/DC Power Adapter (Included)
Channels of I/O
Analog:
2 Input / 6 Output at 192 kHz
Digital:
8 Input / 8 Output at 48 kHz
Built-In DSP
Yes
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Built-In Microphone
No
Input Level Adjustment
1x Knob

Signal Processing
Pad
No
Gain/Trim Range
Mic Inputs:
Up to +75 dB
High-Pass Filter
No
Solo/Mute
No

Connectivity
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced Mic/Line Input
1x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
2x 1/4" TRS Balanced Monitor Output
1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
Phantom Power
48 V, Selectable On/Off (Selectable on Individual Inputs)
Digital Audio I/O
1x TOSLINK Optical ADAT / S/PDIF Input
1x TOSLINK Optical ADAT / S/PDIF Output
Host Connection
1x USB-C
Host Connection Protocol
USB 2.0
USB (Non-Host)
1x USB-A (Update)
Sync I/O
No
Network I/O
No
MIDI I/O
No
Expansion Slots
No
Wireless
No

Performance
Frequency Response
A/D Converters:
10 Hz to 20 kHz ±0.2 dB (at 44.1 kHz)
D/A Converters:
10 Hz to 20 kHz ±0.05 dB (at 44.1 kHz)
Maximum Input Level
A/D Converters:
+20 dBu (+4 dBu)
+6 dBV (-10 dBV)
Mic Inputs:
+20 dBu
Hi-Z Inputs:
+14 dBu
Maximum Output Level
D/A Converters:
+20 dBu (+4 dBu)
+6 dBV (-10 dBV)
Headphone Output Power
520 mW into 30 Ohms (Max)
90 mW into 600 Ohms (Max)
Impedance
A/D Converters:
4 Kilohms
D/A Converters:
50 Ohms
Mic Inputs:
150 to 4000 Ohms
Hi-Z Inputs:
220 Kilohms
470 Kilohms
20 Megohms
Headphone Outputs:
0.5 Ohms
Dynamic Range
Headphone Outputs:
128 dB (A-Weighted)
A/D Converters:
123 dB (A-Weighted)
D/A Converters:
129 dB (A-Weighted)
THD+N
A/D Converters:
-113 dB
D/A Converters:
-114 dB
Headphone Outputs:
-111 dB (600-Ohm Load)
EIN
Mic Inputs:
129 dB (150-Ohm Source, +60 dB Gain)

Digital Audio
Sample Rates
Up to 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Sync Sources
ADAT, Internal, S/PDIF

Audio Storage & Playback
Media/Memory Card Slot
No

Compatibility
OS Compatibility
Computer: macOS 10.14 or Later / Windows 10 or Later
Mobile: iPadOS Only
Processor Requirement
Intel Core i7
RAM Requirements
4 GB, 8 GB Recommended
Mobile Device Compatibility
iPad Pro (with USB-C)
iPhone
Required Hardware
Available USB-A Port
USB Cable (Included)

Power
Power Requirements
AC/DC Power Adapter (Included)
AC/DC Power Adapter
9 to 16 VDC (Included)
Power Consumption
30 W

Physical
Certifications
CE, FCC
Dimensions
8 x 4.75 x 2.5" / 20.3 x 12.06 x 6.3 cm
Weight
1.8 lb / 0.8 kg

Packaging Info
Package Weight
4.475 lb
Box Dimensions (LxWxH)
11.5 x 10.2 x 4.6"

What's in the Box:

  • Apogee Electronics Symphony Desktop 10x14 USB Audio Interface
  • 12 VDC Power Supply with US, UK, EU, and SAA Power Adapters
  • USB Type-C to USB Type-C Cable
  • USB Type-C to USB Type-A Cable
  • USB Thumb Drive for Touchscreen Control Updates
  • Limited 1-Year Manufacturer Warranty
$543.13

Original: $1,551.80

-65%
Apogee Electronics Symphony Desktop 10x14 USB Audio Interface—

$1,551.80

$543.13

Description

Key Features
  • Symphony Sound Quality in Desktop Format
  • Preamp Emulation, Hardware DSP, Plug-Ins
  • Easy Operation with Color Touchscreen
  • Two Stepped-Gain Preamps with 75 dB Gain
  • XLR-1/4" Mic/Line Inputs & 1/4" Hi-Z In
  • Two 1/4" Monitor Outputs
  • 1/4" and 3.5mm Assignable Headphone Outs
  • Optical I/O for ADAT or S/PDIF
  • USB Type-C and USB Type-A Connectivity
  • Mac, Windows, and iPad Pro Compatible



Overview

Merging the sound quality of the rackmount Symphony I/O Mk II with the simplicity of the Duet and Quartet, the Apogee Electronics Symphony Desktop offers musicians and producers premium Apogee fidelity, flexible I/O, and powerful plug-in processing in a travel-friendly form factor.

With emulations of vintage British and American mic preamps, DSP/native Apogee FX plug-ins, and multiple zero-latency plug-in workflows, the Symphony Desktop puts you in complete control of your tone. Thanks to its color touchscreen and large control knob, the Symphony Desktop provides easy operation and comprehensive visual feedback.

Record mic-, line-, or instrument-level signals through the variable-impedance, high-gain preamps and use the monitor outputs and assignable headphone jacks for listening to the main mix or an alternate source. Expand your setup by connecting external digital equipment to the optical TOSLINK ports, which support 8-channel ADAT or 2-channel S/PDIF protocols.



Key Specs

Channels of I/O
Analog:
2 Input / 6 Output at 192 kHz
Digital:
8 Input / 8 Output at 48 kHz
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced Mic/Line Input
1x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
2x 1/4" TRS Balanced Monitor Output
1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
Digital Audio I/O
1x TOSLINK Optical ADAT / S/PDIF Input
1x TOSLINK Optical ADAT / S/PDIF Output
Host Connection
1x USB-C
Power Requirements
AC/DC Power Adapter (Included)
Channels of I/O
Analog:
2 Input / 6 Output at 192 kHz
Digital:
8 Input / 8 Output at 48 kHz
Built-In DSP
Yes
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Built-In Microphone
No
Input Level Adjustment
1x Knob

Signal Processing
Pad
No
Gain/Trim Range
Mic Inputs:
Up to +75 dB
High-Pass Filter
No
Solo/Mute
No

Connectivity
Analog Audio I/O
2x Combo XLR-1/4" TRS Balanced Mic/Line Input
1x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
1x 1/4" TRS Unbalanced Headphone Output (Front Panel)
2x 1/4" TRS Balanced Monitor Output
1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
Phantom Power
48 V, Selectable On/Off (Selectable on Individual Inputs)
Digital Audio I/O
1x TOSLINK Optical ADAT / S/PDIF Input
1x TOSLINK Optical ADAT / S/PDIF Output
Host Connection
1x USB-C
Host Connection Protocol
USB 2.0
USB (Non-Host)
1x USB-A (Update)
Sync I/O
No
Network I/O
No
MIDI I/O
No
Expansion Slots
No
Wireless
No

Performance
Frequency Response
A/D Converters:
10 Hz to 20 kHz ±0.2 dB (at 44.1 kHz)
D/A Converters:
10 Hz to 20 kHz ±0.05 dB (at 44.1 kHz)
Maximum Input Level
A/D Converters:
+20 dBu (+4 dBu)
+6 dBV (-10 dBV)
Mic Inputs:
+20 dBu
Hi-Z Inputs:
+14 dBu
Maximum Output Level
D/A Converters:
+20 dBu (+4 dBu)
+6 dBV (-10 dBV)
Headphone Output Power
520 mW into 30 Ohms (Max)
90 mW into 600 Ohms (Max)
Impedance
A/D Converters:
4 Kilohms
D/A Converters:
50 Ohms
Mic Inputs:
150 to 4000 Ohms
Hi-Z Inputs:
220 Kilohms
470 Kilohms
20 Megohms
Headphone Outputs:
0.5 Ohms
Dynamic Range
Headphone Outputs:
128 dB (A-Weighted)
A/D Converters:
123 dB (A-Weighted)
D/A Converters:
129 dB (A-Weighted)
THD+N
A/D Converters:
-113 dB
D/A Converters:
-114 dB
Headphone Outputs:
-111 dB (600-Ohm Load)
EIN
Mic Inputs:
129 dB (150-Ohm Source, +60 dB Gain)

Digital Audio
Sample Rates
Up to 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Sync Sources
ADAT, Internal, S/PDIF

Audio Storage & Playback
Media/Memory Card Slot
No

Compatibility
OS Compatibility
Computer: macOS 10.14 or Later / Windows 10 or Later
Mobile: iPadOS Only
Processor Requirement
Intel Core i7
RAM Requirements
4 GB, 8 GB Recommended
Mobile Device Compatibility
iPad Pro (with USB-C)
iPhone
Required Hardware
Available USB-A Port
USB Cable (Included)

Power
Power Requirements
AC/DC Power Adapter (Included)
AC/DC Power Adapter
9 to 16 VDC (Included)
Power Consumption
30 W

Physical
Certifications
CE, FCC
Dimensions
8 x 4.75 x 2.5" / 20.3 x 12.06 x 6.3 cm
Weight
1.8 lb / 0.8 kg

Packaging Info
Package Weight
4.475 lb
Box Dimensions (LxWxH)
11.5 x 10.2 x 4.6"

What's in the Box:

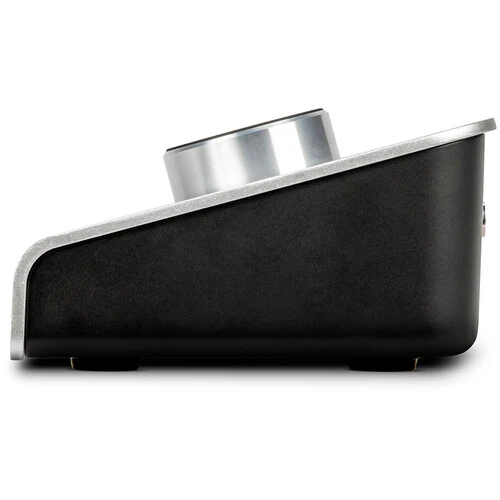

  • Apogee Electronics Symphony Desktop 10x14 USB Audio Interface
  • 12 VDC Power Supply with US, UK, EU, and SAA Power Adapters
  • USB Type-C to USB Type-C Cable
  • USB Type-C to USB Type-A Cable
  • USB Thumb Drive for Touchscreen Control Updates
  • Limited 1-Year Manufacturer Warranty
Apogee Electronics Symphony Desktop 10x14 USB Audio Interface | BHM Store
