AKG WMS420 UHF Wireless Vocal Set

Product image 1

AKG WMS420 UHF Wireless Vocal Set

AKG WMS420 UHF Wireless Vocal Set



Key Features

  • HT420 Handheld Microphone Transmitter
  • SR420 Stationary Receiver
  • Microphone Capsule Rejects Feedback
  • 8-Hour Battery Life on Single AA Battery
  • Detachable Antennas for RF Accessories
  • Balanced XLR and Unbalanced 1/4" Outputs
  • Adjustable Squelch Control
  • Audio Clip and RF Control LEDs
  • 30 MHz Bandwidth
  • 30-Meter Range



Overview

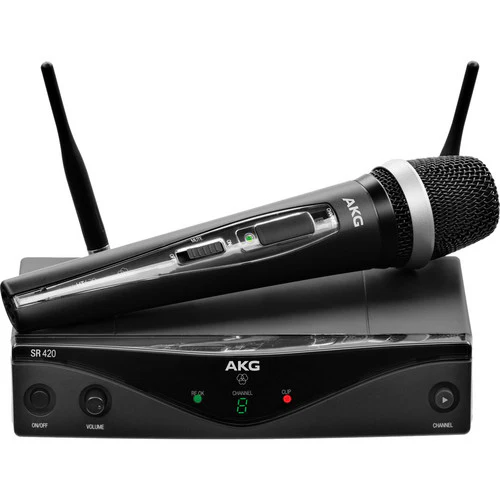

The AKG WMS420 UHF Wireless Vocal Set is designed for live sound reinforcement applications such as for public address, presentations, installations, and music performances that require up to eight simultaneously operating systems over a 30 MHz bandwidth. This system consists of an HT420 Handheld Dynamic Wireless Microphone Transmitter, an SR420 UHF Stationary Wireless Receiver, two detachable RF antennas, an AC adapter for the receiver, a microphone stand adapter, and a AA-size battery for the transmitter.

The UHF receiver features two detachable antennas that enable connection to a wide range of professional RF accessories such as antenna splitters and remote mounted directional antennas for use with multi-channel systems. The front panel of the receiver features an on/off button, a rotary volume control, a button for selecting one of the available eight carrier frequencies within the system's range, an LCD display that shows the selected receiving channel, an RF OK LED to indicate the presence of a signal, and a CLIP LED to indicate when the audio level is too high.


Key Specs

Receiver
Carrier Frequency
Band A: 530.025 to 559.00 MHz
Diversity
Antenna switching
RF Output
10, 20, or 50 mW (depending on frequency band)
Maximum Channel Output
Up to eight compatible channels within one frequency band
Frequency Selection
Fixed frequencies
Modulation
FM
Audio Bandwidth
40 to 20,000 Hz (± 3 dB)
Range
98' (30 m)
Further distances can be achieved using external antennas
Rack Mountable
1/2 RU
Dimensions
5.91 x 1.77 x 7.87" (150 x 45.0 x 200 mm)
Weight
Not specified by the manufacturer
Transmitter
Capsule
Dynamic D5


Polar Pattern
Supercardioid
Signal to Noise Ratio
105 dB-A
THD
0.8% at 1 kHz
Audio Bandwidth
70 to 20,000 Hz (±3 dB)
Transmitter Synchronization
Manual
Battery Type
Six to eight hours on one AA battery
Dimensions
9.33 x 2.01" (237 x 51.0 mm)
Weight
7.55 oz (214 g)
Packaging Info
Package Weight
3.045 lb
Box Dimensions (LxWxH)
17.25 x 12.7 x 3.35"


What's in the Box:
  • AKG WMS420 UHF Wireless Vocal Set
  • SR420 Stationary Receiver
  • HT420 Handheld Microphone Transmitter
  • 2 x Receiver Antennas
  • AC Power Adapter
  • Stand Adapter
  • AA-Size Battery
  • Limited 1-Year Manufacturer Warranty
