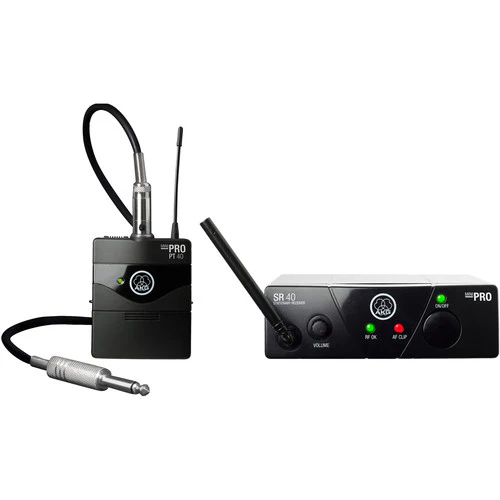

AKG WMS40 Mini Single Instrumental Set Wireless Microphone System

Product image 1

AKG WMS40 Mini Single Instrumental Set Wireless Microphone System

Key Features

  • For Guitar & Bass Instruments
  • SR40 Mini Single Wireless Receiver
  • PT40 Mini Wireless Bodypack Transmitter
  • Single Fixed
  • Includes Instrument Cable
  • Universal Power Supply

Overview

The WMS40 Mini Single Instrumental Set Wireless Microphone System from AKG is a true plug and play wireless solution that provides clear audio sound. It can be used with guitar and bass instruments, headsets, and instrumental mics in applications to capture audio for live stage, rehearsals, hotels, gyms, and more. In addition, it has an extremely long battery life of 30 hours on a single AA battery, and saves money in day-to-day operation.

The WMS40 is a fixed system and includes a SR40 single wireless receiver, PT40 mini pocket wireless transmitter, MKG L instrument cable, and a universal power supply.

Key Specs

Wireless Technology
Analog UHF
Included Transmitters
1x Bodypack
RF
C: 539.3 MHz
RF Channel Scanning
Manual
Max Operating Range
100' / 30.5 m
Max Transmitters per
1
Mobile App Compatible
No
Modulation
FM
SNR
105 dBA
THD
0.8 %
Receiver
Receiver Type
Tabletop / Rackmount
Mounting Options
Rackmount (with Optional Hardware)
Rackmount Size
1 RU (1/2 Rack)
Antenna
2x External, Fixed (Front-Mount)
Number of Audio Channels
1
Audio I/O
1x 1/4" TRS Female Unbalanced Output
Frequency Response
40 Hz to 20 kHz
USB/Lightning Connectivity
No
Power Requirements
AC/DC Power Adapter
AC/DC Power Adapter
12 VDC at 300 mA (Included)
DC Input Power
12 VDC at 300mA
Display & Indicators
3x LED (AF Level, Clip, Power, RF Level)
Dimensions
5.2 x 1.7 x 5.2" / 133 x 42.5 x 132 mm
Transmitter
Transmitter Type
Bodypack
Input Level
Microphone
RF Output Power
10 mW
Audio I/O
1x TA3/Mini-XLR 3-Pin Male Input
Included Cable Connector
1/4" TRS
Pad
No
Muting
Off/On Switch
Sync Method
Manual
Antenna
1x Flexible Whip, Fixed
Power Requirements
Battery
Battery Type
1x AA
Approx. Battery Life
30 Hours
USB/Lightning I/O
No
Display & Indicators
1x LED (Audio Level, RF Output Power, Sync)
Dimensions
2.4 x 2.9" / 60 x 73.5 mm

What's in the Box:

  • AKG WMS40 Mini Single Instrumental Set Wireless Microphone System (C)
  • SR40 Mini Wireless Receiver
  • PT40 Mini Wireless Bodypack Transmitter
  • AA Battery
  • MKG L Instrument Cable
  • Power Supply Unit
  • Limited 2-Year Manufacturer Warranty
