Key Features

Compatible with Canon TTL
Dual Flash Head Design
Guide Number: 79' at ISO 100
Coverage: 90° Vertical & Horizontal
LED Autofocus Assist Light
Ratio Mode; 1st & 2nd Curtain Sync
Recycle Time: 3 Seconds at Full Power
Runs on Four AA Batteries
52, 58, 67, and 72mm Adapter Rings

Overview

Evenly illuminate the closest of subjects with the Yongnuo YN-24EX TTL Macro Flash for Canon Cameras, that uses a dual flash head design that is mounted to the front of your lens, providing excellent control over the position of the light and how it will light the subject. This system provides coverage of 90° with the ability to rotate the adapter ring 50° upwards and 30° downwards as well. These heads also feature excellent power with a guide number of 85' at ISO 100 for a single head or 79' at ISO 100 when both flash heads are in use.

While TTL is supported, full manual control is available from 1/1 to 1/128 power. For additional help, an LED autofocus assist light is present on the YN-24EX and users have access to both 1st and 2nd curtain sync. For working with other systems, a PC sync port is available, and the flash runs off four AA batteries or a HV power pack, both of which offer a recycle time of three seconds at maximum power. Additionally, it comes with 52, 58, 67, and 72mm adapter rings.

Key Specs

Guide Number	78.7' / 24 m at ISO 100
Recycle Time	Approx. 3 Seconds
Exposure Control	Canon E-TTL / E-TTL II
Secondary Illumination	Modeling Light
Wireless Operation	No
Color Temperature	5600K
Internal Power	4x AA
Lens Compatibility	52mm/58mm/67mm/72mm Filter Threads (via Included Adapter Ring)

Flash

Guide Number	78.7' / 24 m at ISO 100
Angle of Coverage	90° Horizontal 90° Vertical
Recycle Time	Approx. 3 Seconds
Exposure Control	Canon E-TTL / E-TTL II
Power Range	1/1 to 1/128
Secondary Illumination	Modeling Light

Wireless

Wireless Operation	No
Color Temperature	5600K

Power

Internal Power

4x AA

General

Mount	Shoe Mount
Lens Compatibility	52mm/58mm/67mm/72mm Filter Threads (via Included Adapter Ring)
Display	LCD
Off-Camera Terminal	PC
Dimensions (W x H x D)	6.9 x 4.1 x 6.3" / 175.0 x 105.0 x 160.0 mm (Controller) 9.9 x 1.9 x 4.2" / 251.0 x 49.0 x 107.0 mm (Ring)
Weight	2.2 lb / 998 g

Packaging Info

Package Weight	2.27 lb
Box Dimensions (LxWxH)	9.3 x 6 x 5.4"

What's in the Box:

Yongnuo YN-24EX TTL Macro Flash for Canon Cameras
52mm Adapter Ring
58mm Adapter Ring
67mm Adapter Ring
72mm Adapter Ring
Travel Bag
Limited 1-Year Manufacturer Warranty

On Camera Flash

Price

Collections

Nikon SB-500 AF Speedlight

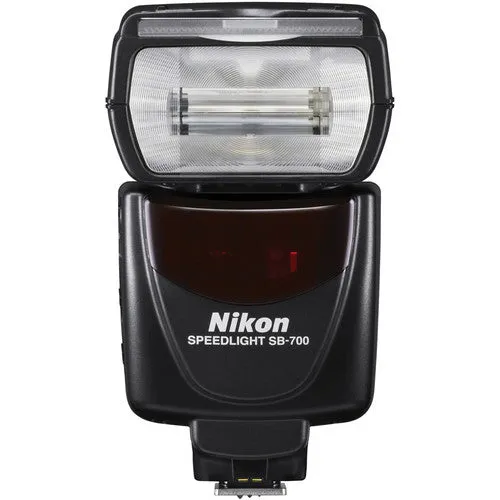

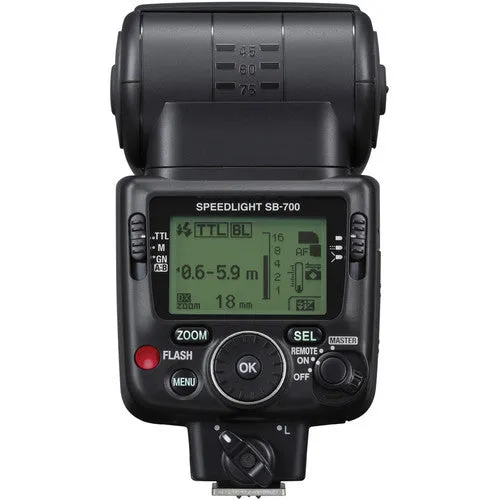

Nikon SB-700 AF Speedlight

Nikon SB-5000 AF Speedlight

Godox Lux Master Retro Camera Flash

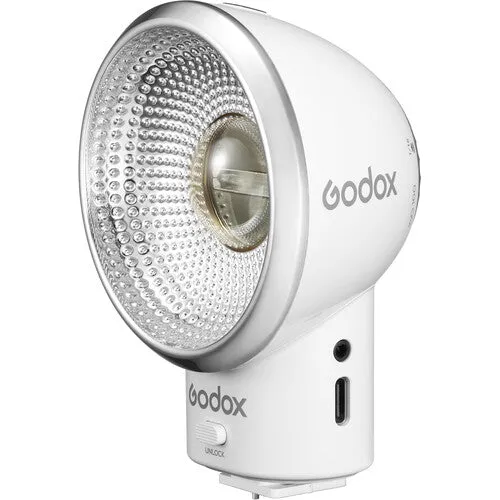

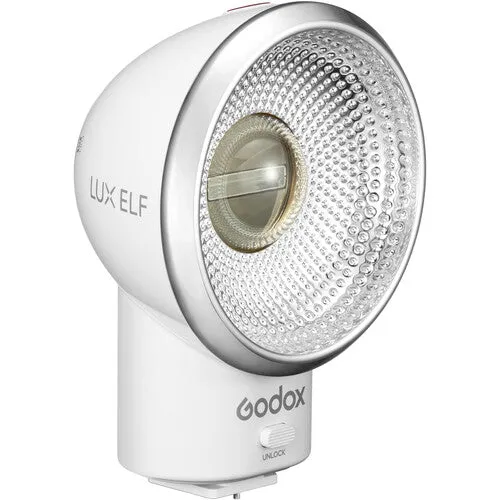

Godox Lux Elf Camera Flash

Godox Lux Cadet Retro Camera Flash

Godox V1 Flash

Godox TT685II Flash

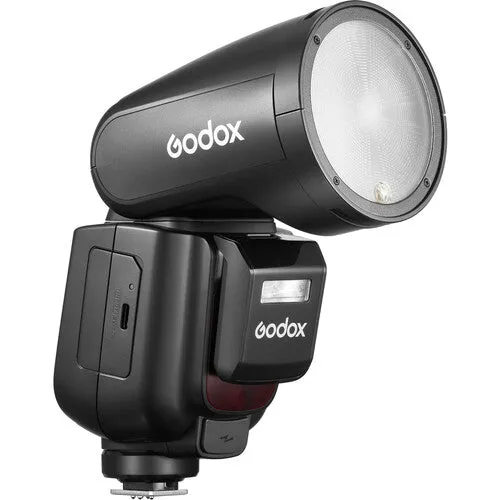

Godox V1Pro Flash
